Fully Automatic Straight Pole Barrier Gate Waterproof 80W For Security

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW238
Minimum Order Quantity 10 piece
Price USD 180-230 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Running Speed Starting Rod 2-6S Adjustable Boom Direction Exchangeable

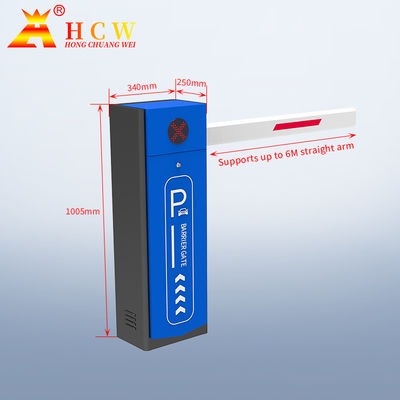

Box Thickness Foot Thickness 1.5mm Dimension 350X282X1000mm
Pole Length ≤ 6 Meters Straight Rod Motor Capacitor Running Asynchronous Motor Or DC Brushless Motor
Rated Capacitance 6uF/450V Motor Power 80W, 120W
High Light

Waterproof Pole Barrier Gate


80W Pole Barrier Gate


80W automatic security barriers

Leave a Message
Product Description

Boom Barrier Gate High Speed Fully Automatic Waterproof For Parking Management



* Outdoor Waterproof: Multi-Environment adapted.
* Resistance Reaction: Lift when outer force applied.
* Multi-controlling: Remotely, manually, and payment option.
* Auto Bounce-back Function: Prevent vehicle from smashing.
* High Integrated Feature: Accessories Available and Compatible.
* Open-Priority: Remotely Lift in any case to encounter emergency.
* Rubber Texture Strips Surrounded: Precausion to any possible damage.
* Angle Sensor: Instatly boom position capture, high precision, steady movement.


Product performance
1. Special rotating structure,no gear,no belt rotation,no maintenance,stable use,long life
2. The specially designed balance structure enables the brake lever to start slowly,run quickly,and stop slowly.
3. The jitter caused by the operation of the brake lever is eliminated.
4. The brake lever runs permanently at 90 degrees, and the 360-degree operation accident occurs after troubleshooting.
5. Specially designed low-speed aluminum housing motor, gearbox one-piece design, low noise, fast heat dissipation.
6. The drive mechanism is designed with an intelligent overheating protection system to control the temperature rise of the motor

    under frequent use.Make the motor not easy to burn out.


Take-off and landing time 1.5S 3S 6S
Working temperature -25℃~+75℃
Working humidity ≤90%, no condensation
Power supply AC 220V/50HZ
Fuse specification φ5×20 5A
Power output DC 12V ≤0.2A
Fall limit output dry contact signal, normally open
Ceiling output dry contact signal, normally open
Receiver working voltage DC 5V
Encoder working voltage DC 5V
Operating voltage of limit switch DC 5V
