Hotel Parking Barrier Gate IP54 Opening Closing Time 1.5~6s Adjustable Boom Gate System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Boom Brrier | Housing Size | 1100mm*330mm*255mm |
|---|---|---|---|
| IP Level | IP54 | Humidity | ≤90% |
| Motor | 50W DC24V Brushless Torque Motor | Working Temperture | -30°~80° |
| Working Humidity | 5%~95% | ||
| Highlight | IP54 Parking Barrier Gate,6s Parking Barrier Gate,IP54 boom gate system |
||
Product Description
Opening Closing Time 1.5~6s Adjustable Hotel Paking Lot Management Boom Barrier
Efficient Traffic Flow, Intelligent Control
Equipped with high-speed motors and an intelligent control system, the barrier arm achieves a rapid 1.5s lifting and lowering time, significantly improving vehicle throughput and eliminating congestion! Supports multiple verification methods, including license plate recognition, Bluetooth remote control,etc. ensuring precise authorization and preventing unauthorized entry for enhanced security.
Main Features
* Manual release
* Machine core with compression spring
* Aluminum alloy motor, precision and good at thermal radiating
* Intelligent overheating protection system, solving the problem of heat-protection
* Double safety limit switches (photoelectric limit switch/mechanical limit switch)
* Reversing on obstacle
* Auto-closing
* Special blancing structure design makes the barrier boom has the feature of slow-staring,
fast-running, slow stopping
* 90 degree running which excludes the accident caused by 360 degrees running
* Special low-speed motor with aluminum casing, one-piece gear box design, low noise, fast heat-
dissipation
* Manual release
* Machine core with compression spring
* Aluminum alloy motor, precision and good at thermal radiating
* Intelligent overheating protection system, solving the problem of heat-protection
* Double safety limit switches (photoelectric limit switch/mechanical limit switch)
* Reversing on obstacle
* Auto-closing
* Special blancing structure design makes the barrier boom has the feature of slow-staring,
fast-running, slow stopping
* 90 degree running which excludes the accident caused by 360 degrees running
* Special low-speed motor with aluminum casing, one-piece gear box design, low noise, fast heat-
dissipation
This product uses the new mold designing technology, mold stamping, die casting technology and no clutch designing. And the quality is more reliable. The mechanism uses the gear worm and crank link structure, and the boom move steady, and easy and quick maintenance.
<
| Product name | CW238 |
| Motor | DC brushless |
| Power supply | 150w |
| Material | Cold Rolled Steel |
| Application | Roadway Safety |
| Surface treatment | Galvanized + Powder Coated |
| Thickness | 1.5mm |

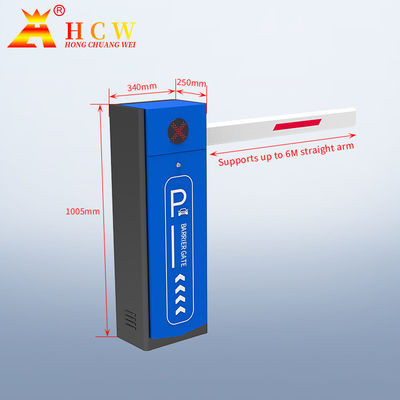

| Size | 340*250*1005mm |
| Working environment | -30℃~+80℃ |

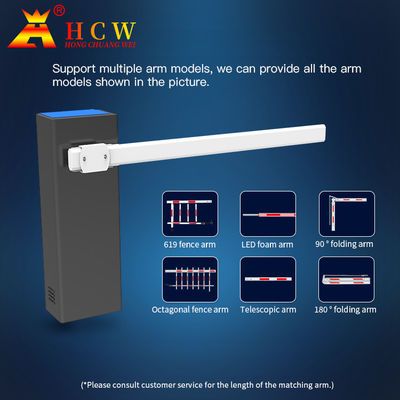

| Available poles | Straight arm,folding arm, fence boom,Foam rod |
| Support length | Straight arm≤6m,fence boom≤4.5m |
| Foldable Rod Types | 90° and 180° |
| Lift and drop time | 1.5~6s(Adjustable) |
| Quiet | working noise is lower than 50db |
| Multiple protection | Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection; |
