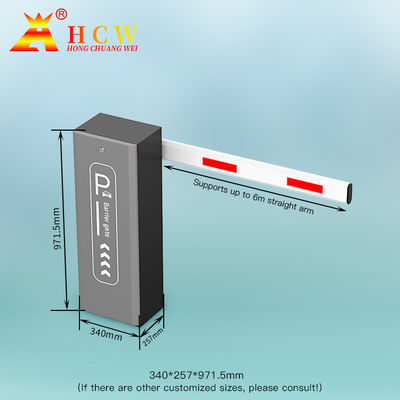

CE EMC Toll Barrier Gate / Customized 3.5m Length Vehicle Boom Barrier System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | AC, DC, Servo | Boom Type | Straight, Folding, Fence |
|---|---|---|---|
| Boom Length | 3m, 3.5m, 4m, Max 6m | Humidity | ≤90% |
| Frequency | 50Hz/60Hz | Working Temperture | -30°~80° |
| Working Humidity | 5%~95% | ||
| High Light | EMC Toll Barrier Gate,3.5m Vehicle Boom Barrier,3.5m Toll Barrier Gate |
||
Product Description
CE EMC Certificates Barrier Gate Customized Advertisement Fencing Barrier
Functions & Features
1. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally
2. Machine core with strong and double springs, make the machine core works more steadily
3. Die-casting aluminum alloy motor, precise and good at thermal radiation
4. Crank and rod structure makes the boom run placidly
5. Double safety limit switches(photo electricity limit switch and motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping function(optional)
9. Support external and internal vehicle loop detector(optional)
10. Traffic light interface(AC220V, can support lamp with 40W)
2. Machine core with strong and double springs, make the machine core works more steadily
3. Die-casting aluminum alloy motor, precise and good at thermal radiation
4. Crank and rod structure makes the boom run placidly
5. Double safety limit switches(photo electricity limit switch and motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping function(optional)
9. Support external and internal vehicle loop detector(optional)
10. Traffic light interface(AC220V, can support lamp with 40W)
This product uses the new mold designing technology, mold stamping, die casting technology and no clutch designing. And the quality is more reliable. The mechanism uses the gear worm and crank link structure, and the boom move steady, and easy and quick maintenance.
| Safety | 24V DC power supply to ensure personal safety. |
| Energy-saving | static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W; |
| Adjustable speed | independent adjustment of the lifting and closing speed. |
| Stable work | Multi-speed design makes the working state linear and stable. |
| Quiet | working noise is lower than 50db |
| Multiple protection | motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection; |
| Support | external remote control input |
| Support | various parameters can be set |
| Support | light sensitive to turn on the light of the advertising gate |
| Support | windproof, antifreeze, antirust and other functions |
| Support | multiple relay output modes. |
