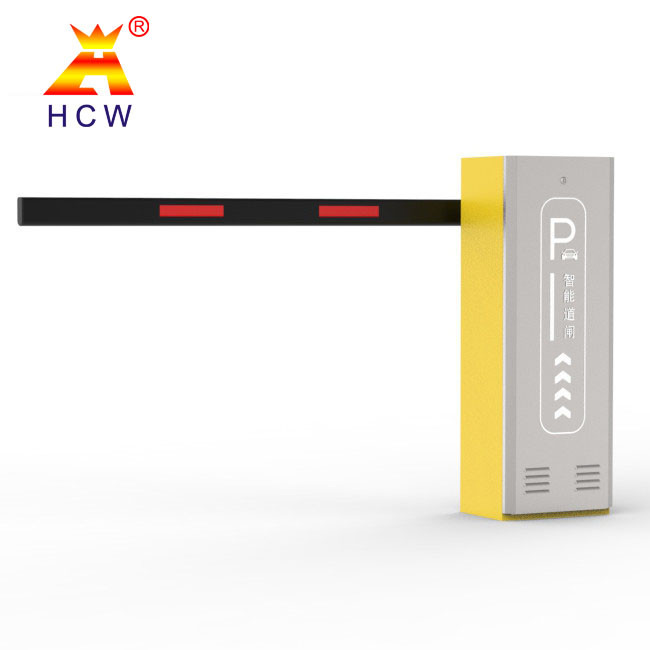

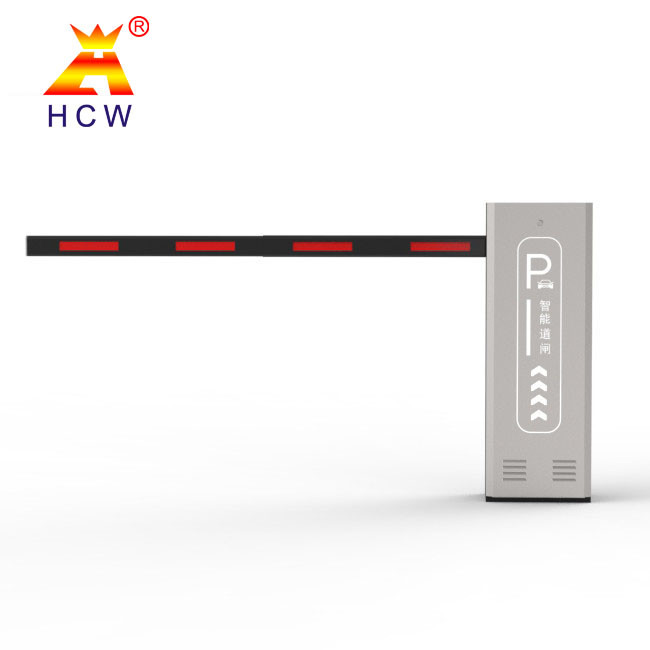

UHF Reader Parking Boom Barrier Automatic Rising Arm Barrier Gate Multi Speed
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Arm Dimension | 45*100MM | Voltage | AC220V±10%,AC110V±10% |
|---|---|---|---|
| Motor Power | 100W | Humidity | ≤90% |
| Frequency | 50Hz/60Hz | Working Temp | -35℃~+70℃ |
| Working Humidity | 5%~95% | ||
| High Light | UHF Reader Parking Boom Barrier,100W parking boom barrier,UHF Reader auto boom gate |
||
Product Description
UHF Reader Parking Boom Barrier Automatic Rising Arm Barrier Gate Multi Speed
Functions & Features:
1. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally
2. Machine core with strong and double springs, make the machine core works more steadily
3. Die-casting aluminum alloy motor, precise and good at thermal radiation
4. Crank and rod structure makes the boom run placidly
5. Double safety limit switches(photo electricity limit switch and motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping function(optional)
9. Support external and internal vehicle loop detector(optional)
10. Traffic light interface(AC220V, can support lamp with 40W)
11. Wire control(switch signal)/Remote control(418MHZ)
12. Digital limit, more precise
13. Open, close control interface for parking system
14. Provide limit state signal to parking system
2. Machine core with strong and double springs, make the machine core works more steadily
3. Die-casting aluminum alloy motor, precise and good at thermal radiation
4. Crank and rod structure makes the boom run placidly
5. Double safety limit switches(photo electricity limit switch and motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping function(optional)
9. Support external and internal vehicle loop detector(optional)
10. Traffic light interface(AC220V, can support lamp with 40W)
11. Wire control(switch signal)/Remote control(418MHZ)
12. Digital limit, more precise
13. Open, close control interface for parking system
14. Provide limit state signal to parking system
DC brushless servo motor barrier gate, the newly design, maintenance with exclusive Micro-drive unit offers 100% more torque, 100% duty, are the fastest toll barrier gates available with an openning time as fast as 0.6 seconds. Opening speed is adjustable from 0.6s/0.9s to 6s or more.
This barrier redefines performance in non-stop toll applications. It's the ideal solution for very high frequented toll stations providing great reliability and sustainability as well as comprehensive functionality. This barrier use innovative technology design and manufactured with precision machinery to guarantee satisfaction in quality and reliability for years to come.
| Safety | 24V DC power supply to ensure personal safety. |
| Energy-saving | static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W; |
| Adjustable speed | independent adjustment of the lifting and closing speed. |
| Stable work | Multi-speed design makes the working state linear and stable. |
| Quiet | working noise is lower than 50db |
| Multiple protection | motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection; |
| Support | external remote control input |
| Support | various parameters can be set |
| Support | light sensitive to turn on the light of the advertising gate |
| Support | windproof, antifreeze, antirust and other functions |
| Support | multiple relay output modes. |
