Fast Speed Car Park Barrier Gate IP55 LED Automatic Boom Barrier With RFID
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Opening Time | 0.6s, 0.9s (adjustable To 6s) | Material | 2.00mm Steel |
|---|---|---|---|
| Motor Power | 100W | Protection Class | IP55 |
| Frequency | 50Hz/60Hz | Working Temp | -5℃~+60℃ |
| Working Humidity | 5%~95% | ||
| High Light | Rfid car park barrier gate,P55 car park barrier gate,automatic boom barrier with rfid |
||
Product Description

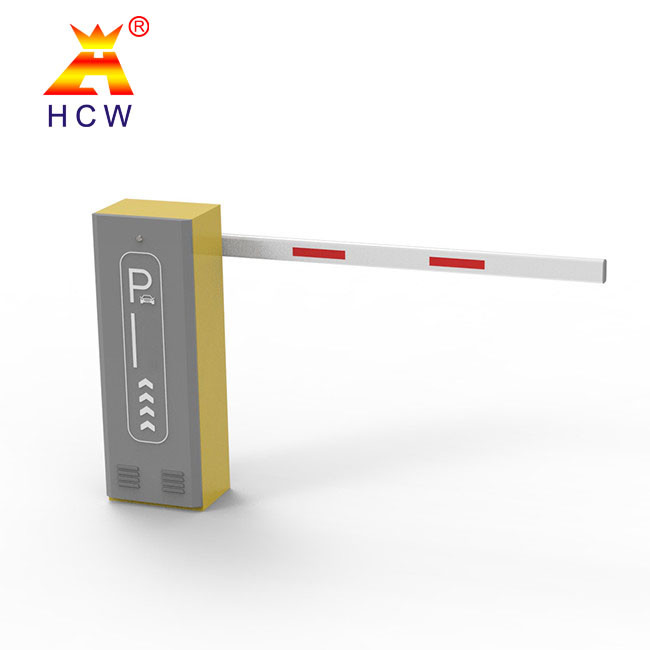

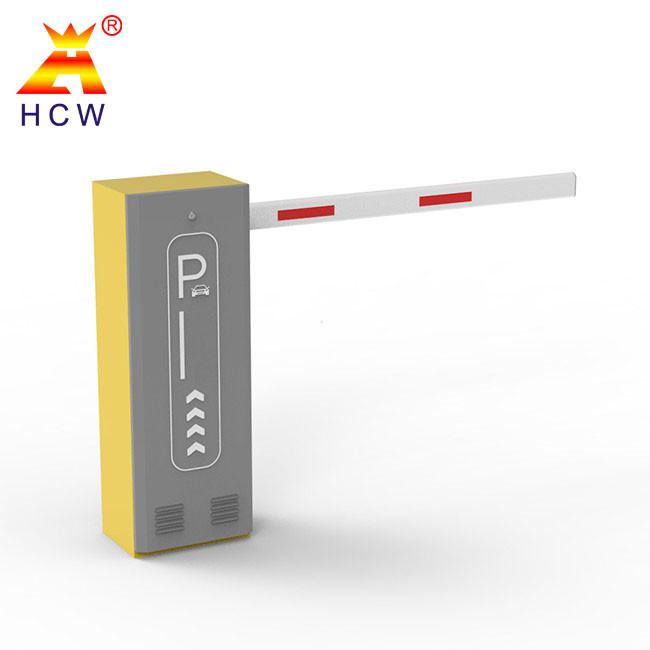

Servo Motor Fast Speed Car Parking Boom Barrier LED Road Barrier Gate
Easy installation and maintenance reduces your labor cost.
Spray-molded refrigerator body, unique surface treatment make the vibrant look,and strong UV resistance to prevent color.
Traffic light guidance display.
Manually control in case of no power.
Anti-bumping function protects boom arm and vehicle (optional).
Digital circuit control system, with opening priority function.
Arm will be self-locked in any position to avoid unauthorized person to manually operate arm.
RS485 Communication module, manage remotely.
Multiple open boom modes: Wire Control/Remote control/Ground sense control.
Support the external protections: Infrared Photocell/Vehicle Detector.
DC brushless servo motor barrier gate, the newly design, maintenance with exclusive Micro-drive unit offers 100% more torque, 100% duty, are the fastest toll barrier gates available with an openning time as fast as 0.6 seconds. Opening speed is adjustable from 0.6s/0.9s to 6s or more.
This barrier redefines performance in non-stop toll applications. It's the ideal solution for very high frequented toll stations providing great reliability and sustainability as well as comprehensive functionality. This barrier use innovative technology design and manufactured with precision machinery to guarantee satisfaction in quality and reliability for years to come.
| Safety | 24V DC power supply to ensure personal safety. |
| Energy-saving | static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W; |
| Adjustable speed | independent adjustment of the lifting and closing speed. |
| Stable work | Multi-speed design makes the working state linear and stable. |
| Quiet | working noise is lower than 50db |
| Multiple protection | motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection; |
| Support | external remote control input |
| Support | various parameters can be set |
| Support | light sensitive to turn on the light of the advertising gate |
| Support | windproof, antifreeze, antirust and other functions |
| Support | multiple relay output modes. |
