DC24V Parking Barrier Gate Folding Arm Barrier Gate Articulated Boom

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW239-1
Minimum Order Quantity 10 piece
Price USD250-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

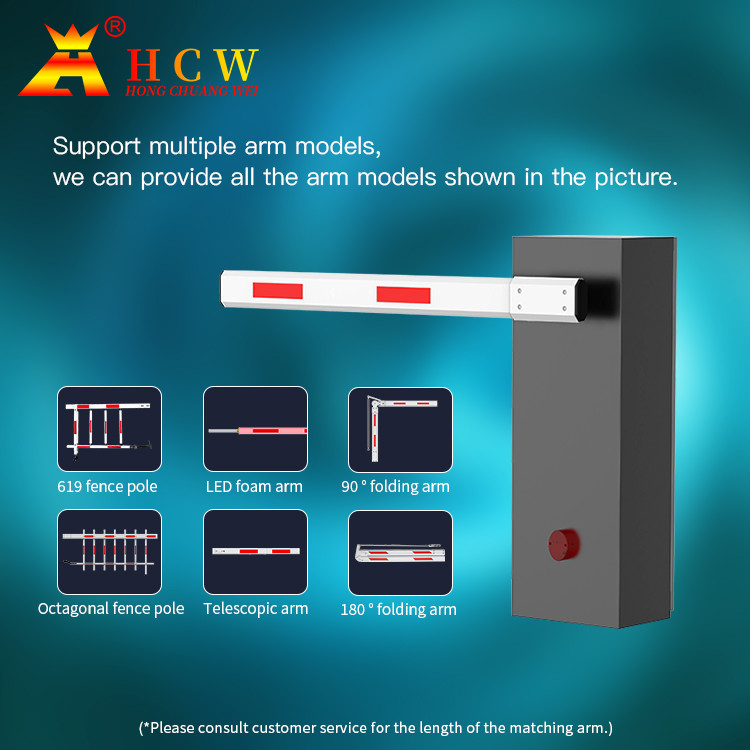

Rail Type Straight ,fence ,folding Arm Arm Material Auminum
Certificates CE Approved Housing Dimension 330*280*980mm
Housing Painting Powder Coating Working Temperature -25℃~55℃
Working Humidity 10%~95% No Condensation
High Light

DC24V Folding Arm Barrier Gate


980mm Parking Barrier Gate


DC24V Parking Barrier Gate

Leave a Message
Product Description

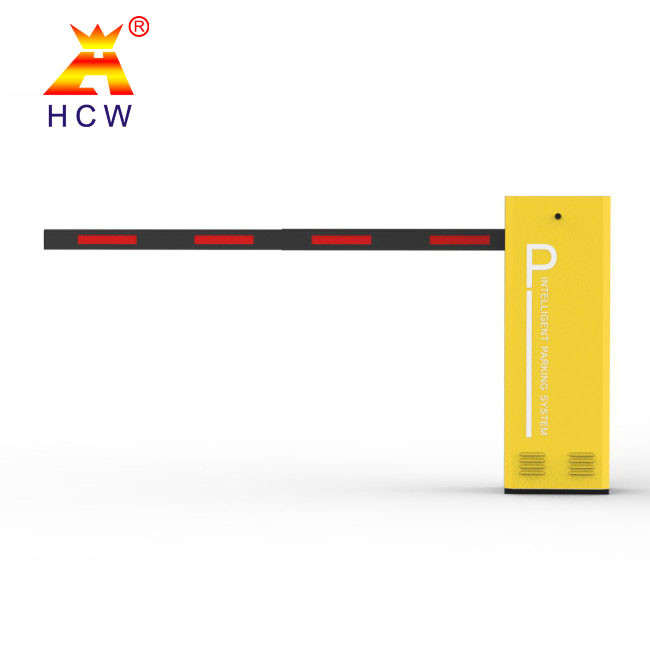

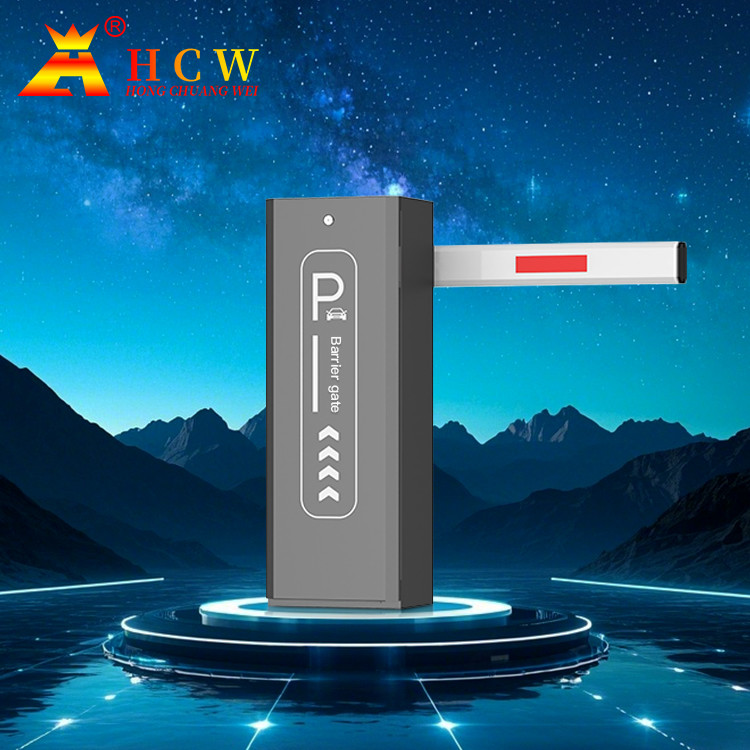

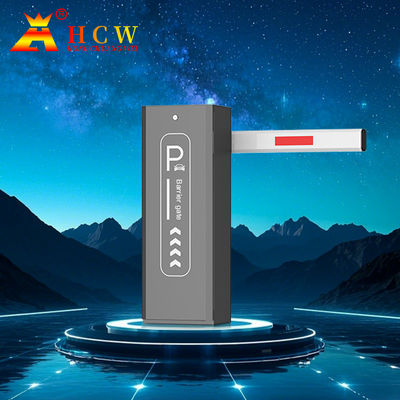

Automatic Vehicle Access Security Control Car Parking Boom Gate Barrier



Functions and Feature:

Open the barrier gate by motor wheel when power off and automatic locking when power on

Balanced boom running with a motor transmission of cranks and shafts

Remote control to operate the barrier gate

Auto-reverse when the boom meets the obstruction

Infrared photocells connector is available

Loop detector connector is available

Well-integrated with car parking system equipment, with wire control (push button)

Connector for the traffic light

Offering dry contact signal for car parking system (COM, NC, NO)

Auto-delay when closing (adjustable)


Safety sensors options: The control panel has the ability to connect all or any of the following safety sensors: Exit/Entry Wand, to automatically open or close the boom gate Loop Detector, to automatically open or close the boom gate PE (photoelectric sensors), to prevent the boom gate from closing on an car or person.
Operating options The system is supplied with a control panel housed in a protective plastic control box with 3 controlling push buttons (Open, Close, and Stop).
The system can also be controlled from any or all the above optional controlling devices: Keypads Remote Controls ID Swipe card Readers Finger Print Readers Push Button Switches Key Switches GSM Switch (Telephone Dialer)
Dimension: 330mm×345mm×950mm (excluding barrier arm), weight is about 60KG + barrier arm



Safety 24V DC power supply to ensure personal safety.
Energy-saving static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W;
Adjustable speed independent adjustment of the lifting and closing speed.
Stable work Multi-speed design makes the working state linear and stable.
Quiet working noise is lower than 50db
Multiple protection motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection;
Support external remote control input
Support various parameters can be set
Support light sensitive to turn on the light of the advertising gate
Support windproof, antifreeze, antirust and other functions
Support multiple relay output modes.
