HCW DC Motor Automatic Boom Parking Barrier Gate Straight Pole Or Folding Arm Barrier
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE |
| Model Number | CW228 |
| Minimum Order Quantity | 2 pcs |
| Price | Negotiable |
| Packaging Details | wood cases |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | DC Barrier Gate | Color | Grey/orange/yellow |
|---|---|---|---|
| Material | 1.5mm Cold Roll Plate | Dimension | 260*340*970mm |
| Housing Painting | Powder Coating | Working Temperature | -25℃~55℃ |
| Working Humidity | 10%~95% No Condensation | ||
| Highlight | DC Motor Parking Barrier Gate,6m Arms Parking Barrier Gate,3m Arms barrier boom gate |
||
Product Description
Servo Motor Automatic Boom Parking Barrier Gate Straight Pole Or Folding Arm Barrier
-
Smart Protection, Smooth Passage
—— Precise recognition, instant lifting! Intelligent gate barriers safeguard your vehicles and ensure efficient access. -
One Barrier, Total Security
—— High-strength material, impact-resistant and tamper-proof. 24/7 stable operation, protecting every entrance of your community/parking lot/factory. -
Technology-Driven, Hassle-Free Access
—— License plate recognition, remote control, automatic billing… Smart gate barriers make management easier and access more convenient! -
Customized Barriers, Built for Professionals
-
—— Suitable for commercial/residential/industrial applications. Multiple styles available, durable quality, and reliable after-sales service!
Features:
1.- The traffic barrier is widely used for the facilities of parking, traffic or toll system.
2.- Arms can be chosen from 3 meters to 6 meters.
3. - This type of barrier could match with direct boom( pole), fold boom Or fence boom..
4.- Advanced manual release . Clutch key can be used to open the clutch when electricity is cut off.
5.- All the process is soft without any noise and shaking.
6.- This barrier gate has many input terminals for photocell, Air wave switch, loop detector, back-up battery(for DC Motor), toll
gate system and output terminals for lamp.

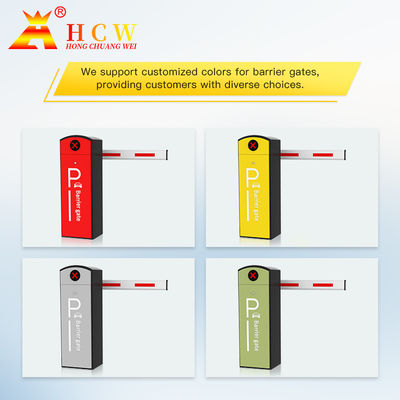

7.- Housing color: yellow, red , blue, orange, white (optional)
8.- Boom arm direction can be chosen leftward to rightward.
9.- Auto warming up, suitable for cold environment.
10. - Controlling way : wireless or wiring multiple push button for OPEN,CLOSE,STOP function.
Safety sensors options: The control panel has the ability to connect all or any of the following safety sensors: Exit/Entry Wand, to automatically open or close the boom gate Loop Detector, to automatically open or close the boom gate PE (photoelectric sensors), to prevent the boom gate from closing on an car or person.
Operating options The system is supplied with a control panel housed in a protective plastic control box with 3 controlling push buttons (Open, Close, and Stop).
The system can also be controlled from any or all the above optional controlling devices: Keypads Remote Controls ID Swipe card Readers Finger Print Readers Push Button Switches Key Switches GSM Switch (Telephone Dialer)
Dimension: 330mm×345mm×950mm (excluding barrier arm), weight is about 60KG + barrier arm
<
| Product name | CW228 |
| Motor | Servo motor |
| Power supply | 200w |
| Material | Cold Rolled Steel |
| Application | Roadway Safety |
| Surface treatment | Galvanized + Powder Coated |
| Thickness | 1.5mm |

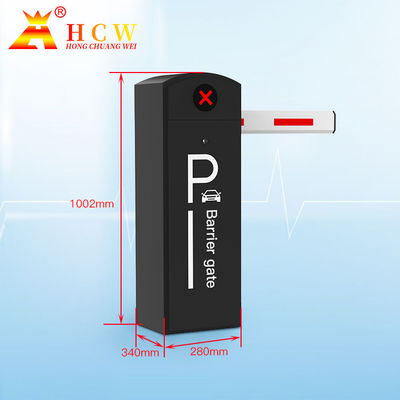

| Size | 340*280*1002mm |
| Working environment | -40℃~+80℃ |

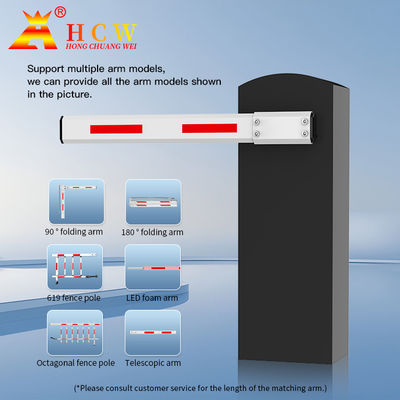

| Available poles | Straight arm,folding arm, fence boom,Foam rod |
| Support length | Straight arm≤6m,fence boom≤4.5m |
| Foldable Rod Types | 90° and 180° |
| Lift and drop time | 1~6s(Adjustable) |
| Quiet | working noise is lower than 40db |
| Multiple protection | Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection; |
