AC110-240V High Speed Boom Barrier Gate

Place of Origin Shenzhen,China
Brand Name Hongpai
Certification CE
Model Number CW228
Minimum Order Quantity 1
Price USD250-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

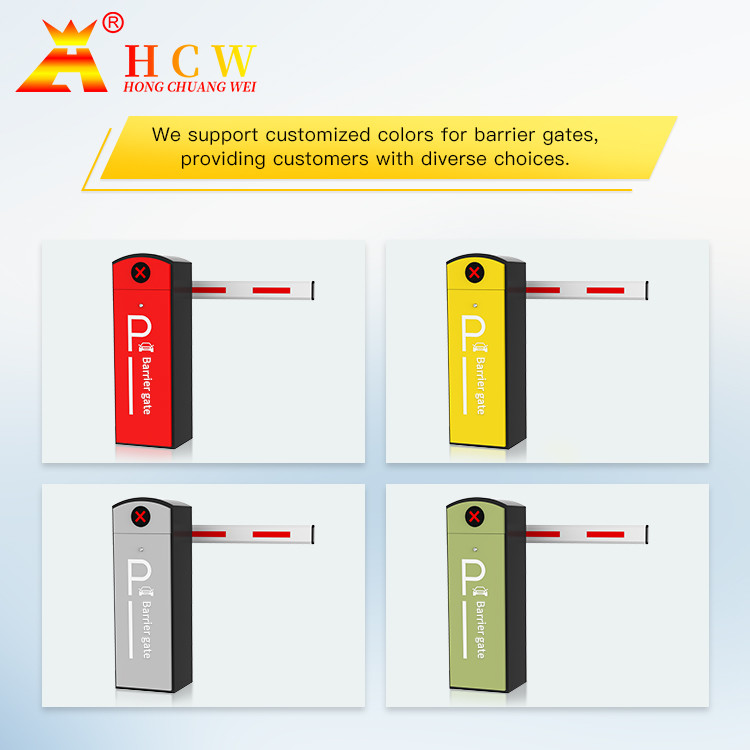

Color Customized Power Supply AC110-240V
Speed 1.5s/3s/6s Rated Power 80W
Package Wood Case Safety Of Car Auto-reversing On Obstacle
Boom Length Max 6 Meters
High Light

240V High Speed Boom Barrier

,

80W high speed boom barrier

,

110V Boom Barrier Gate

Leave a Message
Product Description

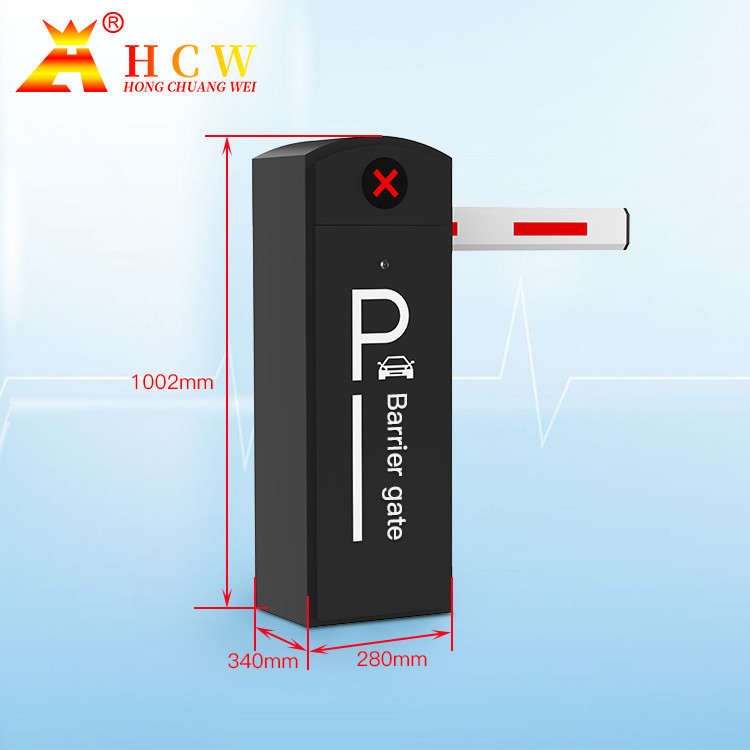

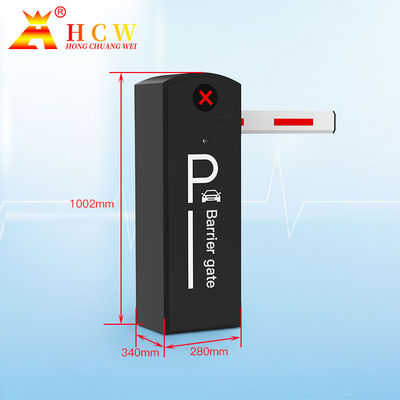

AC110-240V High Speed Boom Barrier Gate 80W For Car Parking Management



The factory workshop has a variety of large-scale advanced machinery and equipment,such as fully automatic robotic bending machines and robotic welding machines,large laser cutting machines and CNC punching machines,which are second to none in the industry.Established an advanced automated spraying assembly line,automated robotic processing production line, sheet metal processing production line,and equipment assembly production line.



It can adapt to the extension spring to respond to the rod length adjustment,which has the characteristics of high safety,intelligence, modernization,and humanization.The surface of the chassis has an exquisite appearance and color matching,electrostatic dust high-temperature baking paint (180 degrees ~ 250 degrees) anti-corrosion, anti-fading,anti-falling,easy to maintain,and the surface texture is delicate,beautiful and generous,and it will last forever.The barrier can be equipped with multiple anti-smashing systems,ground sensing,pressure waves,infrared and other anti-smashing functions.



Technical parameter
Model CW228
Power supply AC220V±10%,50Hz
Working temperature -25℃~+70℃
Environmental humidity 5%~95%
Direction left and right direction

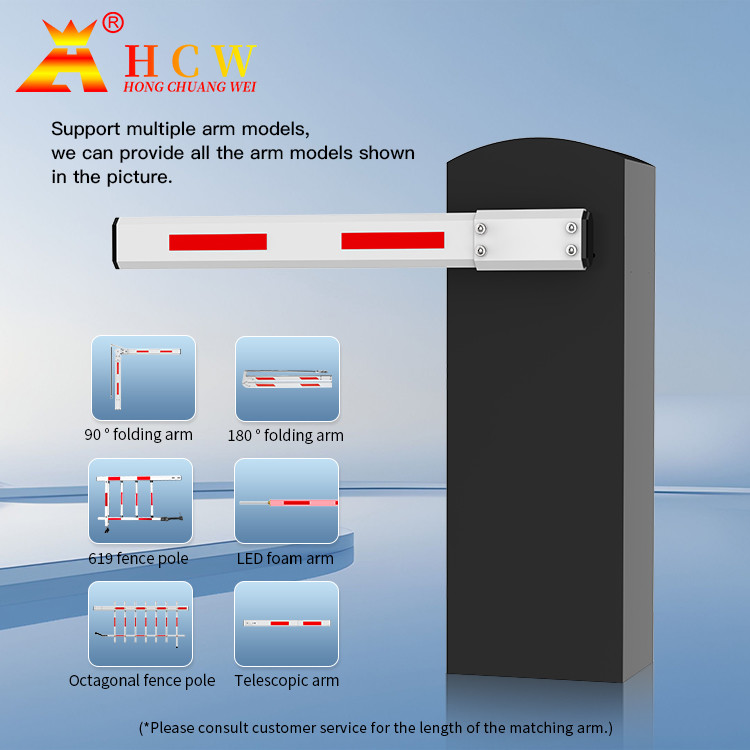

Length of pole ≤6m straight pole,≤ 6m curved pole,≤ 5.5m two poles,≤ 4.5m three poles
Motor Capacitor running asynchronous motor
Rated capacitance 8uF/450V
Motor rate 80W,120W
Rise and fall time 1s-3s
