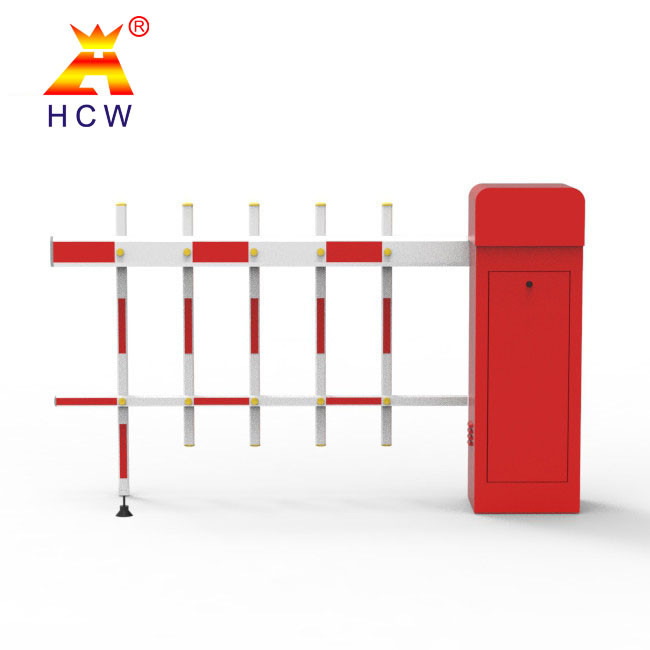

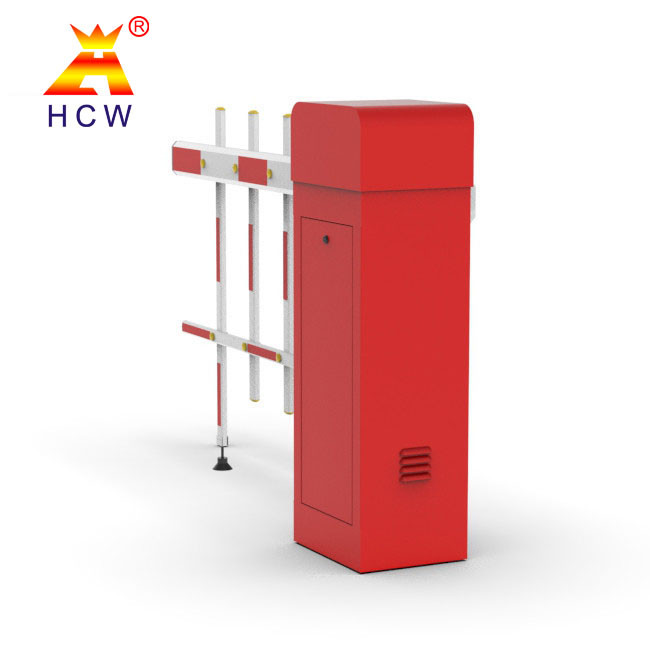

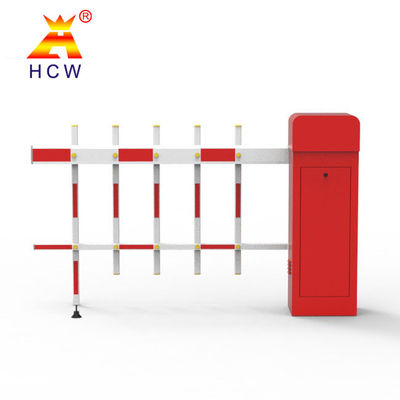

Automatic Rising Arm Parking Barrier Gate OEM Security Barriers And Gates

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW239-1
Minimum Order Quantity 10
Price USD250-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MTBF 10 Million Cycles Speed 1.2s To 6sec Adjustable
DC Servo Motor 100% Duty Cycle Boom Direction Exchangeable
Operating Environment Temperature -40℃~80℃ Safety Of Car Auto-reversing On Obstacle
Boom Length Max 6 Meters
High Light

Automatic Parking Barrier Gate


OEM Parking Barrier Gate


OEM security barriers and gates

Leave a Message
Product Description

10 Million MTBF Working Life Time Automatic Rising Arm Parking Barrier Boom Gate




1) Open/close time: 0.9~6 sec. adjustable

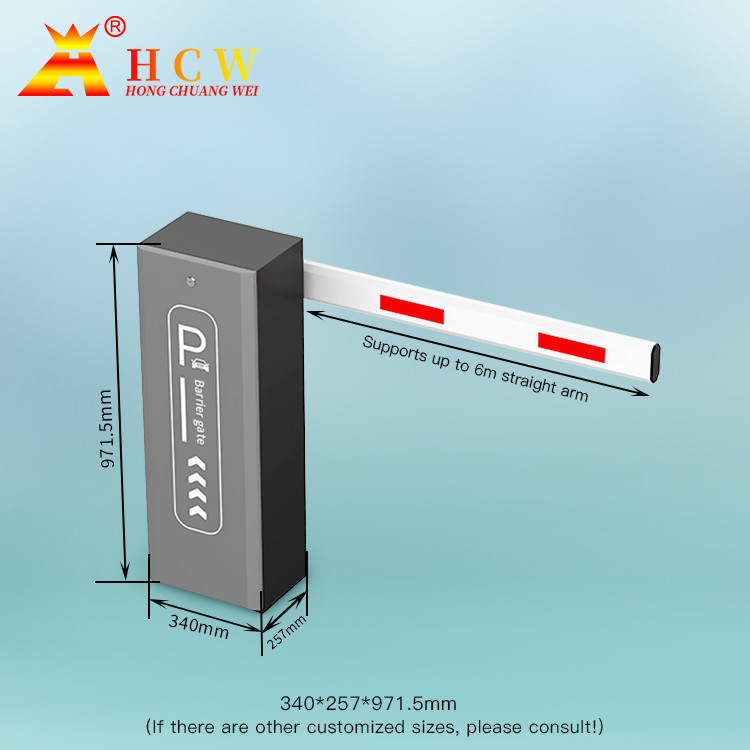

2) Max. 6m straight arm with rubber bar

Max. 5m folding arm with rubber bar

Max. 4.5m fence arm with rubber bar

3) Inclusive of arm, 2 remoters, and "push button" which opens/closes barrier
4) Exclusive of LED light bar, boom bracket and anti-collision mechanism: need to buy extrally
5) Optional housing color: yellow (default),orange, white, red and blue

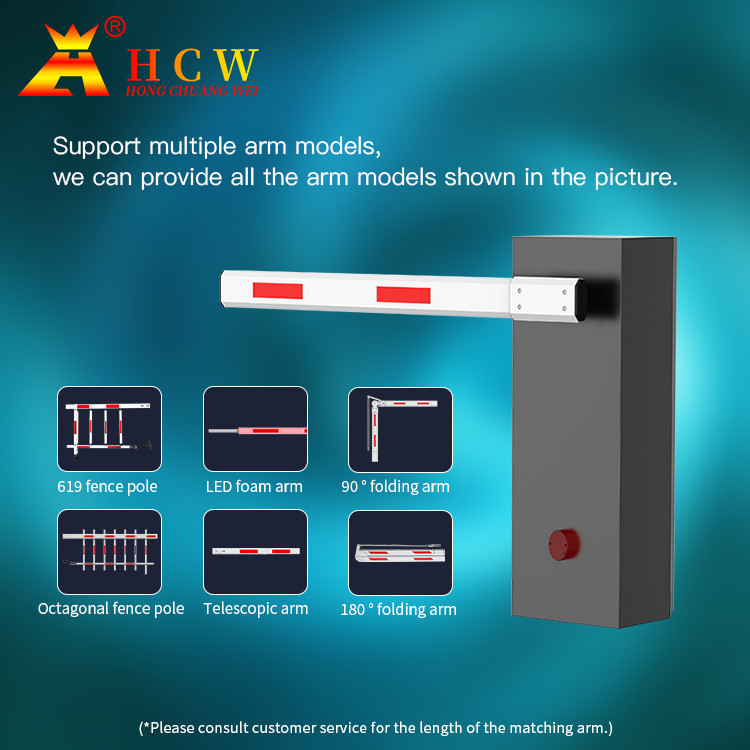

6) Easily change different boom type (straight/crank/fence) without replacing any parts
7) Boom direction is exchangeable without replacing any parts



Our service:

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.


Safety 24V DC power supply to ensure personal safety.
Energy-saving static power is less than 2 watts, and can be connected to a motor with a maximum power of 200W;
Adjustable speed independent adjustment of the lifting and closing speed.
Stable work Multi-speed design makes the working state linear and stable.
Quiet working noise is lower than 50db
Multiple protection motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection;
Support external remote control input
Support various parameters can be set
Support light sensitive to turn on the light of the advertising gate
Support windproof, antifreeze, antirust and other functions
Support multiple relay output modes.
