1.5sec Speed Adjustable Parking Barrier Gate 24VDC Brushless Motor 200W

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW201
Minimum Order Quantity 10 piece
Price USD250-300 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply DC 24V ±10% 10A Motor Power Max 200W

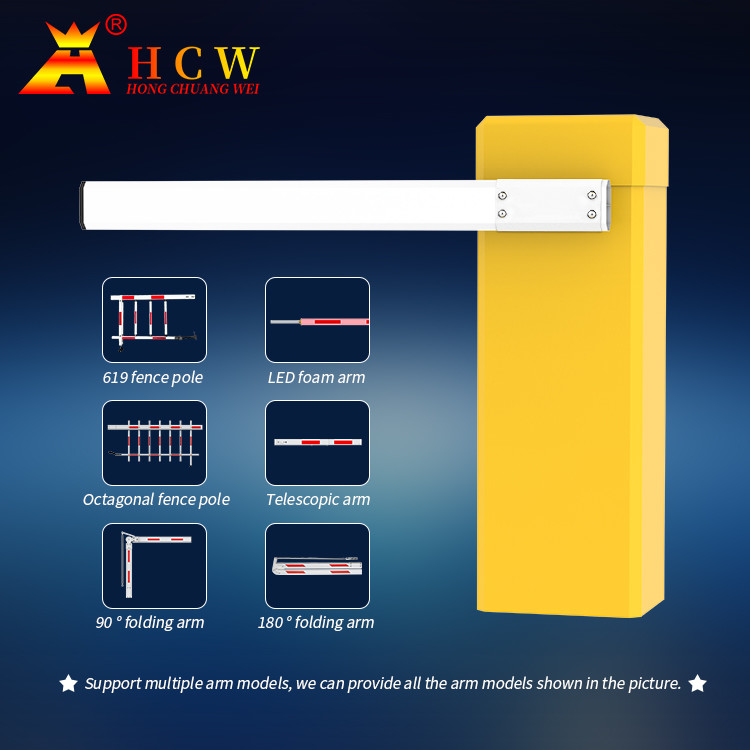

Arm Type Straight, Folding, Fencing Color White, Grey, Customized
Operating Environment Temperature -40℃~80℃ Operating Environment Humidity 30%~80% (no Condensation)

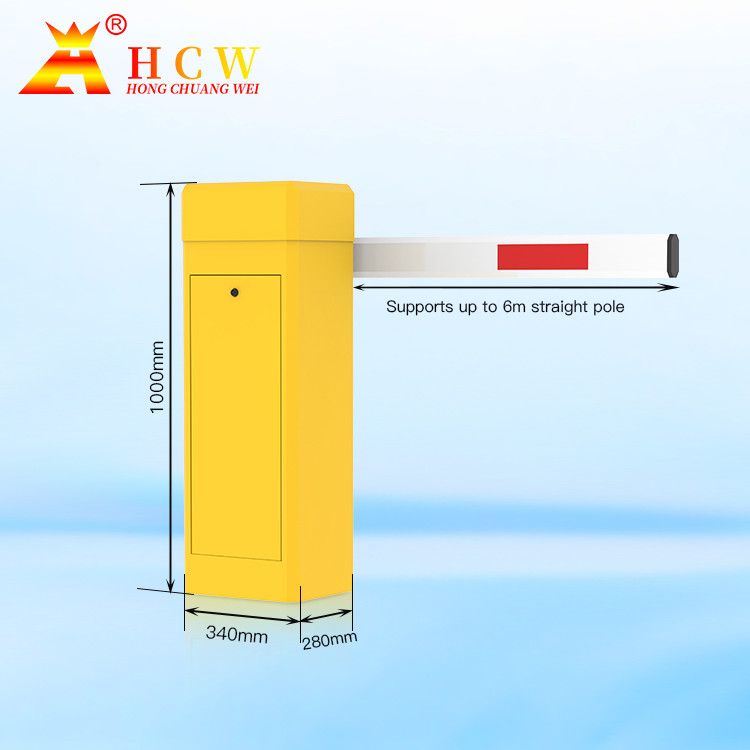

Boom Length Max 6 Meters Speed 1.2s To 6sec Adjustable
High Light

1.5sec Parking Barrier Gate

,

200W Parking Barrier Gate

,

1.5sec adjustable barrier gate

Leave a Message
Product Description

1.5sec Speed Adjustable Parking Barrier Gate 24VDC Brushless Motor 200W





First Generation Motor Barrier(CW201) It is a barrier gate launched by Hongtaiweir.It adopts digital control technology to monitor the entire process of barrier gate operation and realizes the intelligent and simplified barrier gate operation management.The wireless remote control

can be used for lifting,lowering and stopping or manual button operation.The barrier movement adopts a specially designed one-piece movement. The frame,reducer,and transmission mechanism are integrated,which minimizes the vibration of the machine body,greatly improves the operation accuracy of the barrier,and guarantees the safe and reliable operation of the barrier.

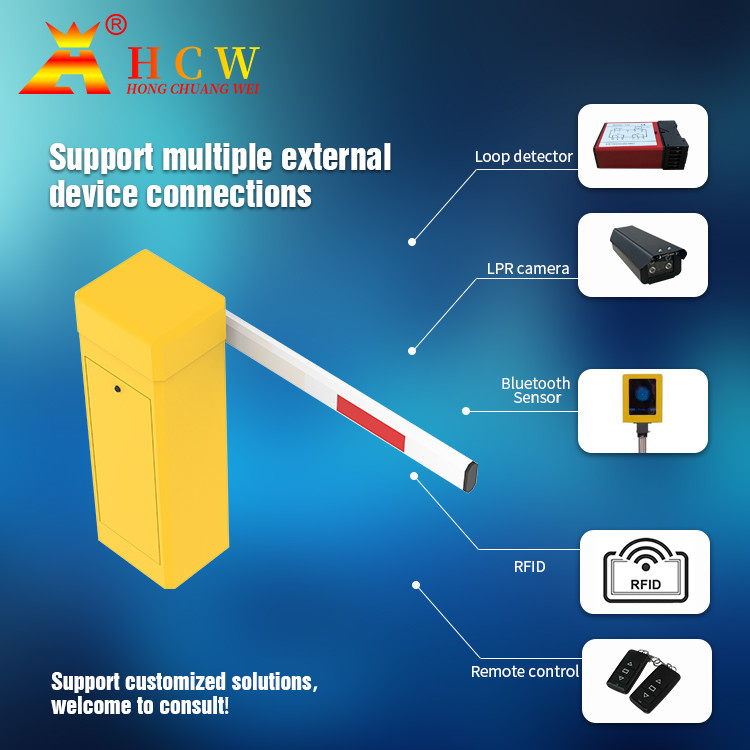

At the same time, it can adapt to the extension spring to respond to the rod length adjustment, which has the characteristics of high safety, intelligence, modernization,and humanization.The surface of the chassis has an exquisite appearance and color matching,electrostatic dust high-temperature baking paint (180 degrees ~ 250 degrees) anti-corrosion, anti-fading, anti-falling,easy to maintain, and the surface texture is delicate,beautiful and generous, and it will last forever. The barrier can be equipped with multiple anti-smashing systems,ground sensing, pressure waves,infrared and other anti-smashing functions.



Technical parameter
Model CW201
Power supply AC220V±10%,50Hz
Working temperature -25℃~+70℃
Environmental humidity 5%~95%
Direction left and right direction
Length of pole ≤6m straight pole,≤ 6m curved pole,≤ 5.5m two poles,≤ 4.5m three poles
Motor Capacitor running asynchronous motor
Rated capacitance 8uF/450V
Motor rate 80W,120W
Rise and fall time 1.5S 3S or 6S
