Outdoor Pedestrian Channel Semi-Automatic Tripod Turnstile with People Counting Function
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE |
| Model Number | CW308 |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | wooden case |
| Delivery Time | 7-15 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 Stainless Steel | Size | 1200x280x990mm |
|---|---|---|---|
| Passage Direction | Single Directional/Bi-directional | Pass Rate | 20~30 Persons/minute |
| Communication | Relay Signal | Input Voltage | 240V |
| Electromagnet | Yes | Mechanical Part | Movement |
| OEM/ODM | Support | ||
| Highlight | 3 Arm Tripod Turnstile Gate,Rfid Tripod Turnstile Gate,Rfid Access Control Turnstile Gate |
||
Product Description

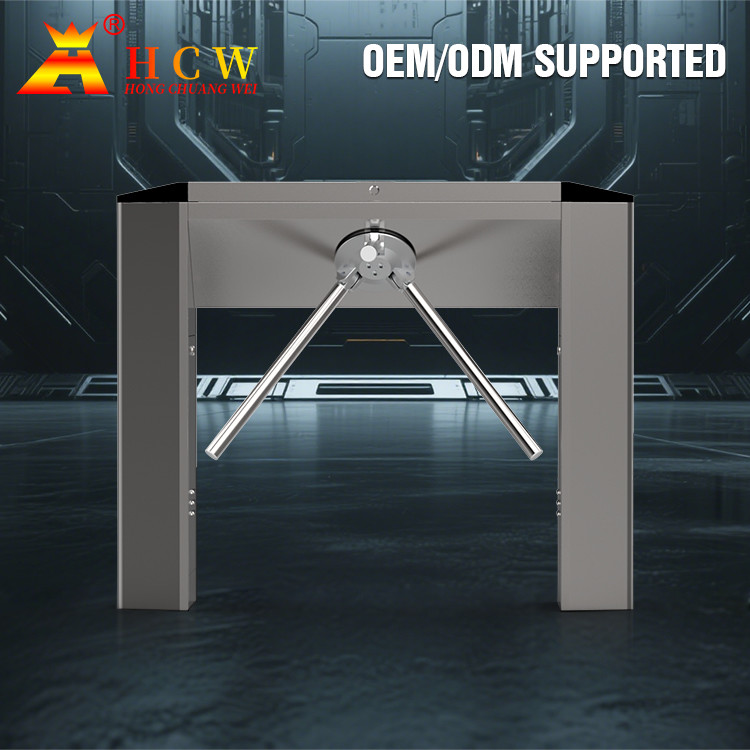

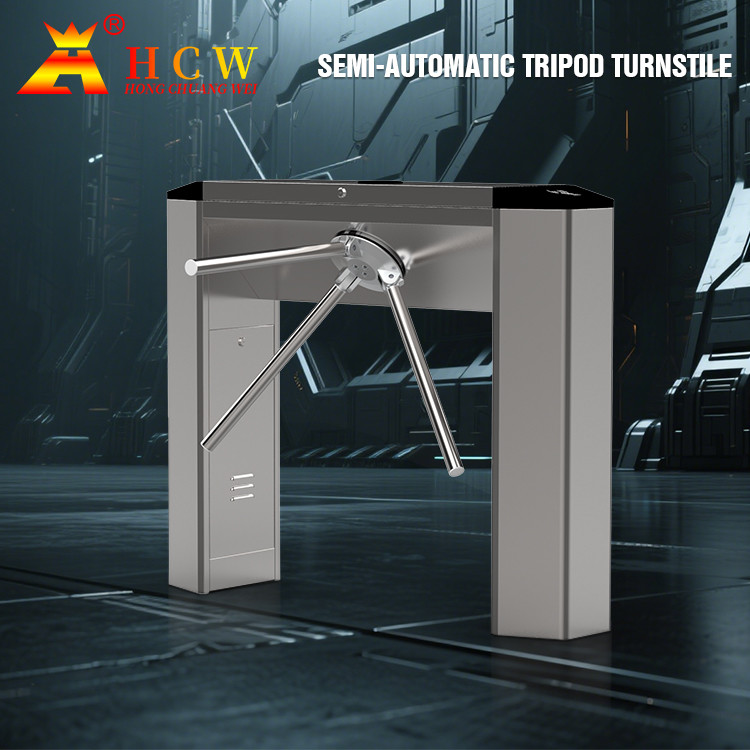

Specialized Tripod Turnstile for Scenic Spots/Construction Sites/Factories | One Person at a Time, Precise Control
It is specially designed for scenarios requiring extremely high security and order management. Our tripod turnstile adopts a classic mechanical structure, and through the dual protection of mechanical anti-reversal + electromagnetic lock control, it implements the rigid rule of "only allowing one person to pass at a time". This effectively prevents tailgating and forced gate rushing, making it the preferred solution for construction sites, factory areas, scenic spot ticket checking and other fields. Additionally, it supports OEM (Original Equipment Manufacturing) brand processing, LOGO printing, function customization and appearance customization.
High Security:
Combining the mechanical limit principle with intelligent signal control, it physically prevents parallel passage, achieving an anti-tailgating rate of up to 99.9%.
Super Impact Resistance:

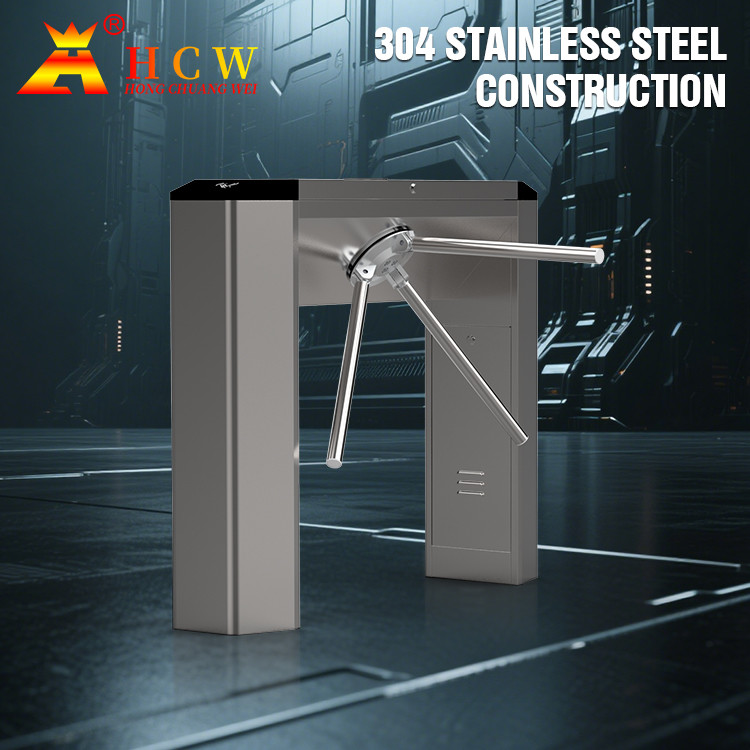

Adopting a high-strength 304 stainless steel main structure and internal reinforcement design, it can withstand high-intensity impact and damage, ensuring sturdiness and durability even in harsh usage environments.
Strong Adaptability:
With an IP42 or higher protection rating, it is windproof, rainproof, and dustproof, suitable for various indoor and outdoor environments. The barrier automatically drops/frees passage when power is off, meeting fire safety requirements.
Flexible Configuration:

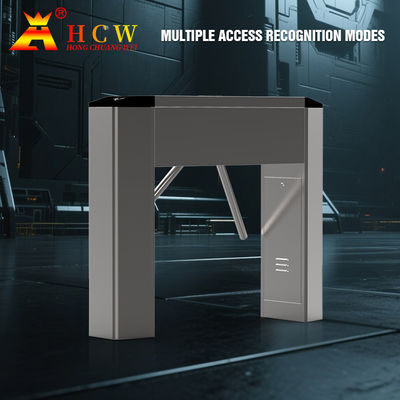

Compatible with multiple identification methods such as card swiping, QR code scanning, fingerprint recognition, and face recognition, it seamlessly connects to access control, attendance, and ticketing systems.
Stable Performance:
Operates with low noise and features smooth starting and stopping.
| Product name | CW308 |
|---|---|
| Power Supply Voltage | AC220V±10%,50/60HZ |
| Motor | Semi-Automatic Tripod Turnstile Mechanism |
| Power supply | 100w |
| Material | 304 stainless steel |
| LED lamp | Red and green |
| Surface treatment | Brushed finish |
| Thickness | 1.0mm |
| Size | 1200*280*990mm |
| Passage Width | 550mm |
| Service Life | 5 million cycles |
| Working environment | -25℃~+70℃ |
| Applicable Locations | Office buildings, scenic spots, apartments, schools, and more |
