240V Bridge Type Tripod Turnstile Gate 304 Stainless Steel For Train Station

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW308
Minimum Order Quantity 10 piece
Price USD200~240 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 304 Stainless Steel Case Thickness 0.95mm
Top Cover Thickness 1.16mm Name Tripod Turnstile
Communication Relay Signal Input Voltage 240V
Electromagnet Yes Mechanical Part Movement
High Light

240V Tripod Turnstile Gate


650mm passage Tripod Turnstile Gate


240V train station turnstile

Leave a Message
Product Description
Cost effective Hhalf height bridge type access control tripod turnstile gate

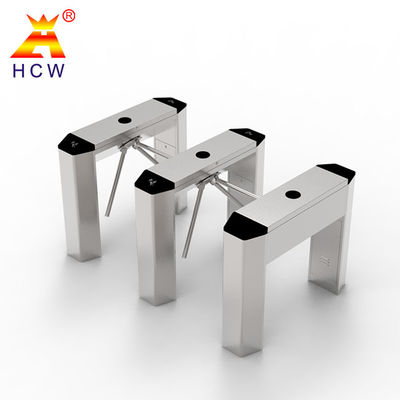

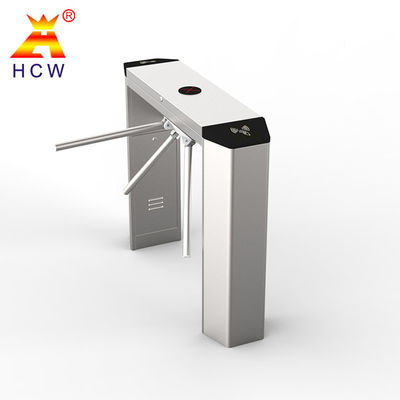

The intelligent bridge tripod turnstile gate is a semi-automatic pedestrian gate.The box frame of this product is a bridge structure with three rotatable booms.The boom and box are made of 304 stainless steel, which can be configured to allow one-way or two-way traffic according to project requirements. The gate control board chip adopts STC CPU, which has the characteristics of long life and high stability, and high efficiency and anti-tailing. The boom is equipped with a solenoid valve that can make the boom automatically drop when the equipment is powered off, meeting the needs of fire escape.This product can be connected to various access control systems,and supports various IC/ID card readers, barcode readers, ID card readers, face recognition, etc.When checking tickets in stadiums, amusement parks, and school facilities,the use of three roller gates is a popular option.They eliminate the need for attendants at the entrance and provide a way to count the number of pedestrians entering the facility. This revolving door with card reader and electronic operating system is also the most popular choice for subway systems, and can be found in most subway systems. In addition,it is also widely used in CBD business centers, government and enterprise office buildings, and high-end residential areas. , Kindergarten, etc. entrance and exit control.



Product model parameters:

Technical parameters:
Product model CW308
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Input control signal Switch value
Running speed

20~30 people/minute.


Opening and closing time Not adjustable
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 550mm
Boom material Stainless steel round tube
Product Size L 1200mm x W 280mm x H 990mm
Channel frame 1.0mm 304D stainless steel
Package weight About 45KG (single side)
