Relay Signal Fully Automatic Tripod Turnstile Gate 230V Intelligent Management

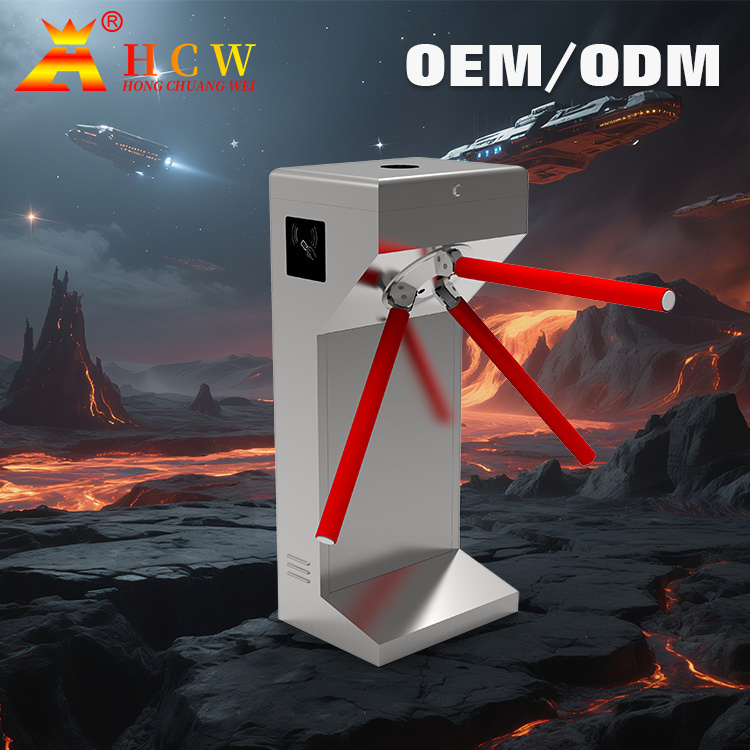

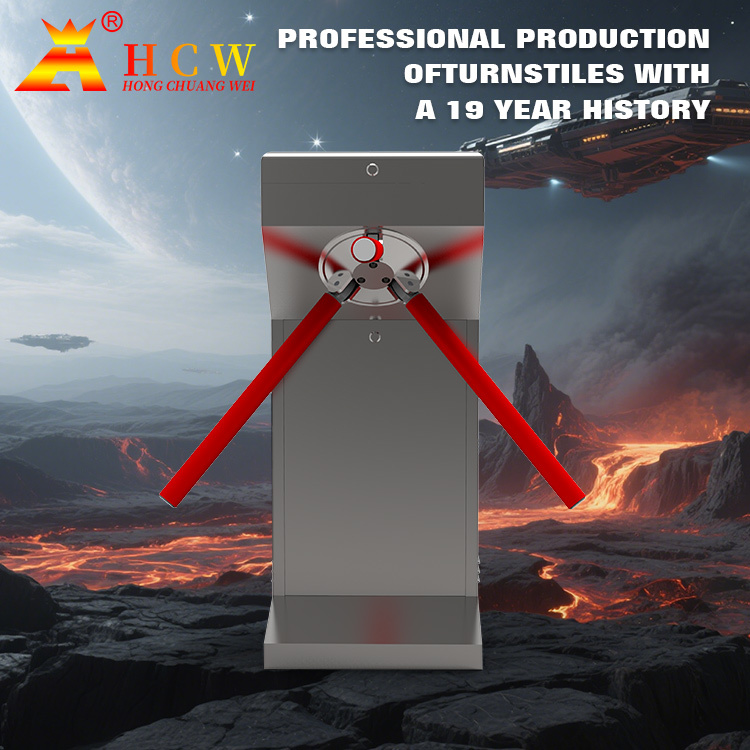

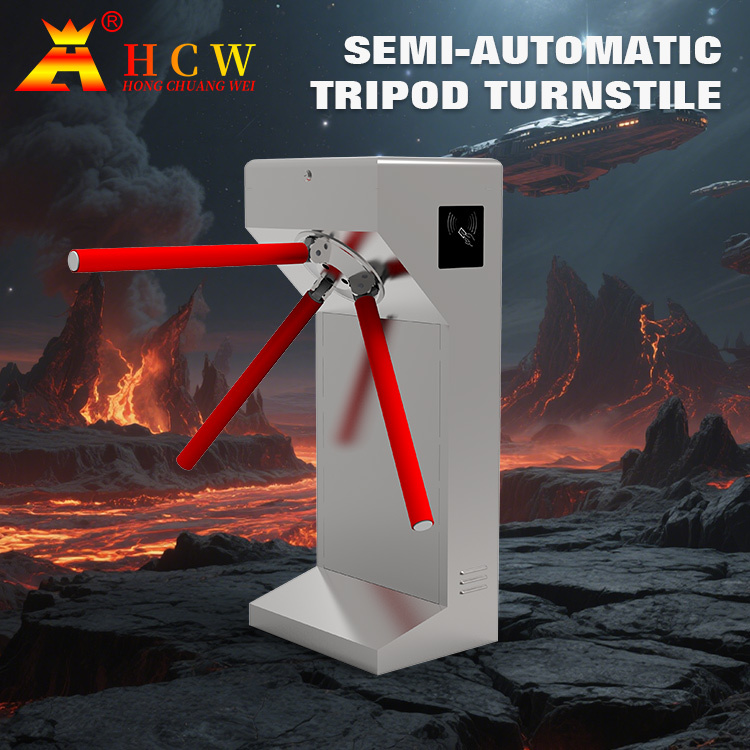

Relay signal stainless steel tripod turnstile outdoor use CW301



General Description

Tripod Turnstile Sportlight:
1. Adopt Brush-less motor, it has longer lifespan.
2. Adopt ARM control technology, merits for stronger function and better expand-ability.
3. Modular design, the structure is simpler and easier to maintain.
4. Better buffer effect, greatly prevent collision and human injuries.
5. With timely reverse push force will fright illegible intruder.
6. Merits for smooth running,speed adjustable and low wear.
7. Higher cost effective(high end performance and affordable price).





Tripod Turnstile Technical Parameter:

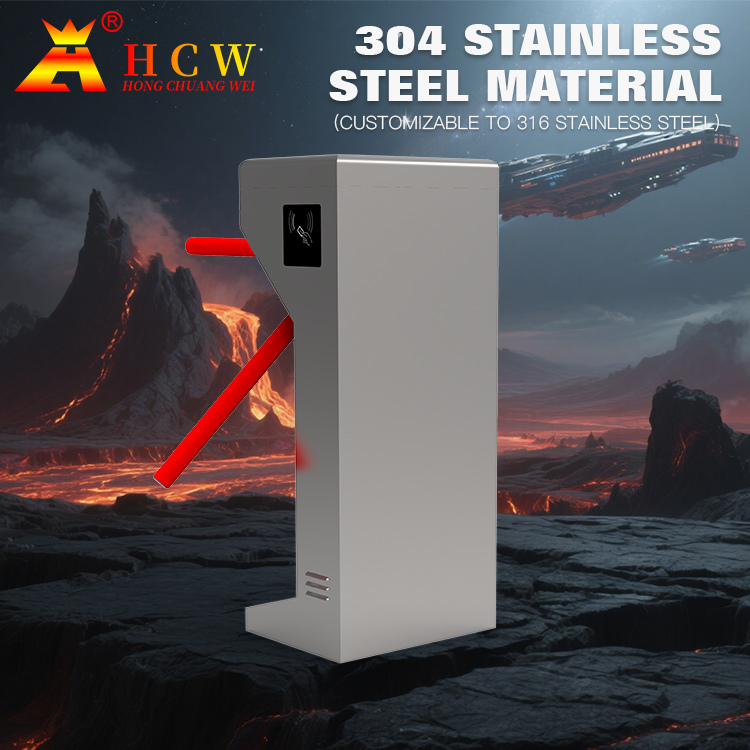

1. Housing material: Stainless steel 304
2. Dimension: Width280*Length320*Height980mm
3. Weight: About 70kg
4. Pole length: 510mm
5. Pole maximum force: 80kg
6. Pole working force: 3KG
7. Pole rotation: one-way and two-way
8. Working movement: 12V/20W DC motor
9. Working environment: Indoor and outdoor(canopy is suggested)
10. Suitable Temperature: -40℃ ~ 80℃
11. Emergency measure: Pole falling when power off
12. Gate opening time: 0.2s
13. Standard input interface: Relay switch signal



House	304 stainless steel
Reliability of the core	3million, no fault

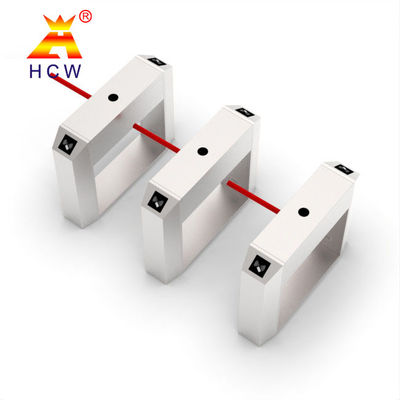

Weight	35Kg(bridge type)
Width of lane	550(mm)
Driving force of arms	3Kg
Driving mode	digital
