1.2m Length Face Recognition Turnstile Waterproof 57cm Lane Width

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW404
Minimum Order Quantity 1
Price USD300~500 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Swing Turnstile Material 304 Stainless Steel
Case Thickness 0.97mm Top Cover Thickness 1.17mm
Lane Width 57cm Pass Direction Bidirectional
Waterproof IP67 Outdoor Use Support
High Light

1.2m Face Recognition Turnstile


SS304 Face Recognition Turnstile


1.2m waterproof turnstile

Leave a Message
Product Description

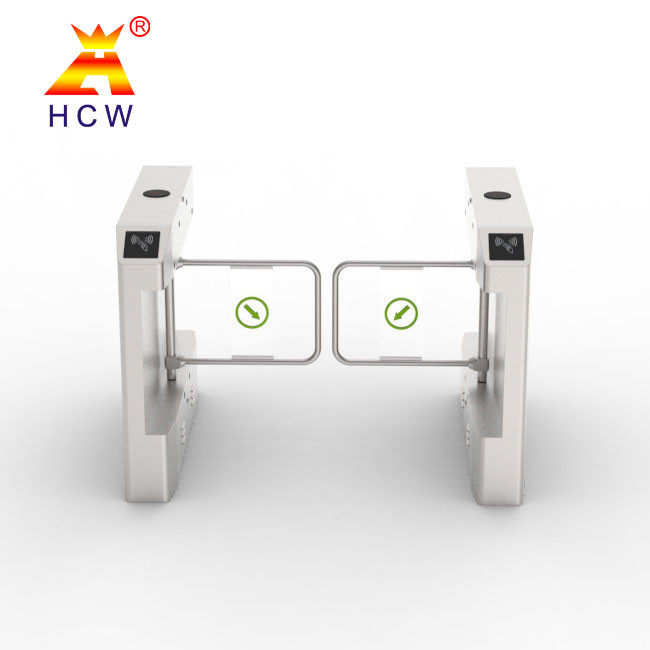

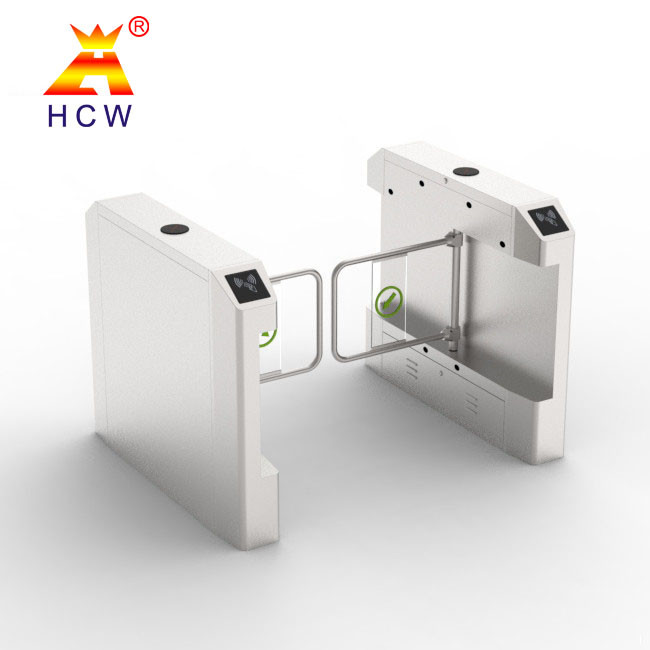

1.2m length face recognition turnstile waterproof outdoor use



1. It has stable and reliable mechanical locking device, precise movement and turntable combination structure with special process;
2. With two-way traffic function, the steering lever is divided into two directions and one direction;
3. It has the function of power-off and off-bar. In case of emergency, the gate will automatically drop the pole, and pedestrians can pass quickly to meet the fire-fighting channel requirements;
4. After the pedestrian reads the valid card, if the system does not pass within the specified time of the system, the system will automatically cancel the pedestrian access right;
5. An external two-way arrow indicator can be connected to indicate the traffic status, and the traffic can be passed or prohibited.
6. An external bidirectional flow counter can be connected to display the number of people in the traffic direction;
7. The control panel has a dial switch, which can adjust the transit delay time by algorithm, and can also be adjusted into a memory mode. For example, brush five effective cards and pass five people;
8. The anti-reverse device function prevents the rotating unit from rotating opposite to the original direction;
9. Unified standard external electrical interface, can be connected with a variety of card readers, and can be remotely controlled and managed through a management computer;
The entire system runs smoothly with low noise


Functions and features
1) Infrared sense to prevent pinch pedestrians
2) Barrier alarms automatically if someone passes illegally;
3)If someone stands in the lane, the barrier won’t open even the card reader gives relay signal to the barrier;
4)Anti-trailing function, the barrier will lock if someone wants to burst in without swiping the IC/ID card.
5)Automatic reset function, pedestrian swiped IC/ID card but did not through in the specified time, barrier system will cancel the
pedestrian’s access automatically,he want to through, needs to swiped IC/ID card again.
6)When power off, the barrier arms will keep open (for safety).
7) Standard Communication Interface, can connect with most of card readers, also can control and manage wireless by computer.


Green means passage
Power supply for core
AC100~220V 50/60Hz
Operational voltage
DC 24V ±5%
Voltage of indicator
DC12V ±5%(standard)
Power consumption
Working environment
Indoors or outdoors(outdoor is optional)
