1mm Thickness Controlled Access Turnstiles Half Height Turnstile 53cm Lane Width

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW404
Minimum Order Quantity 10 piece
Price USD300~500 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

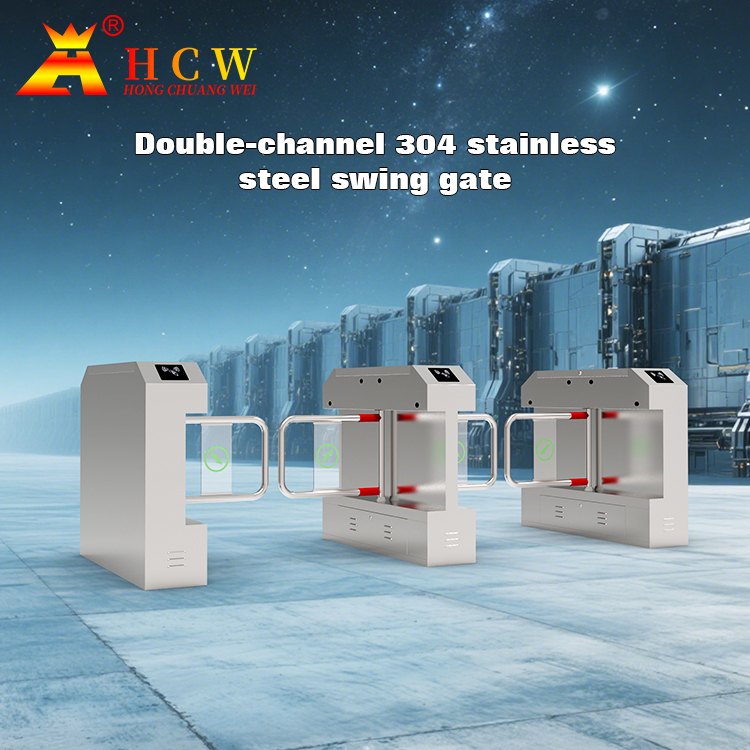

Name Swing Turnstile Material 304 Stainless Steel
Case Thickness 0.93mm Top Cover Thickness 1.13mm
Lane Width 53cm Pass Direction Bidirectional
Waterproof IP55 Outdoor Use Support
High Light

1mm controlled access turnstiles


IP55 controlled access turnstiles


1mm half height turnstile

Leave a Message
Product Description

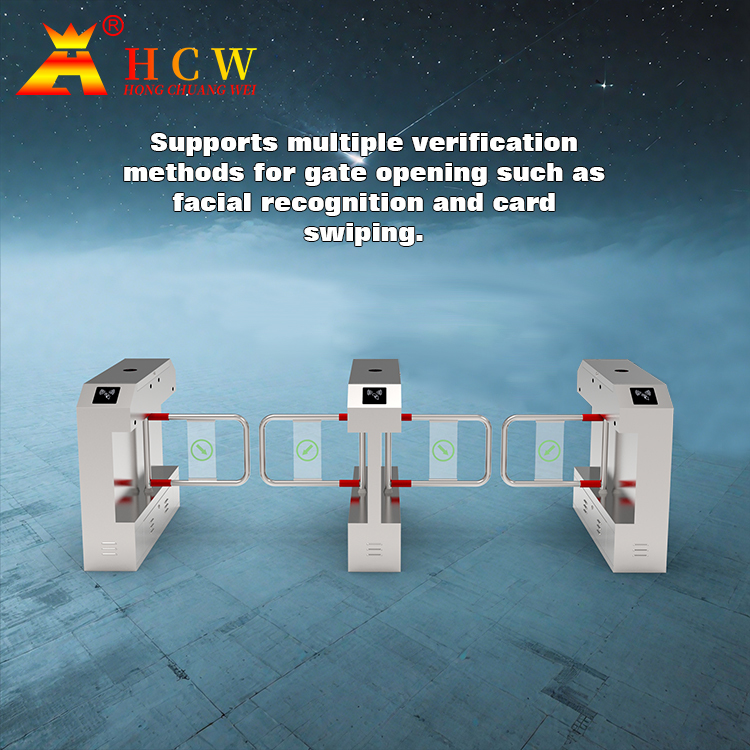

1mm thickness stainless steel face recognition turnstile waterproof outdoor use


1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;

2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.

3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.

5.The bicycle delay function: prevent the gate from hitting the bicycle;

6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.

7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.

8.Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.

10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.


On-site installation and commissioning of equipment
6.1 On-site installation of equipment
1) Count the accessories according to the packing list
2) Determine the installation location of each gate according to the specific system composition, use site and the selected model.
3) As shown in the installation requirements as shown in the figure below, determine the installation hole position, and pre-process 4 M12 anchor bolts or 4 M12 expansion bolts at the installation position.

4) Put the 3/4" PVC pipes of the strong cables and weak current cables respectively through them, and bury them in the corresponding positions with cement.



Green means passage
Power supply for core
AC100~220V 50/60Hz
Operational voltage
DC 24V ±5%
Voltage of indicator
DC12V ±5%(standard)
Power consumption
Working environment
Indoors or outdoors(outdoor is optional)
