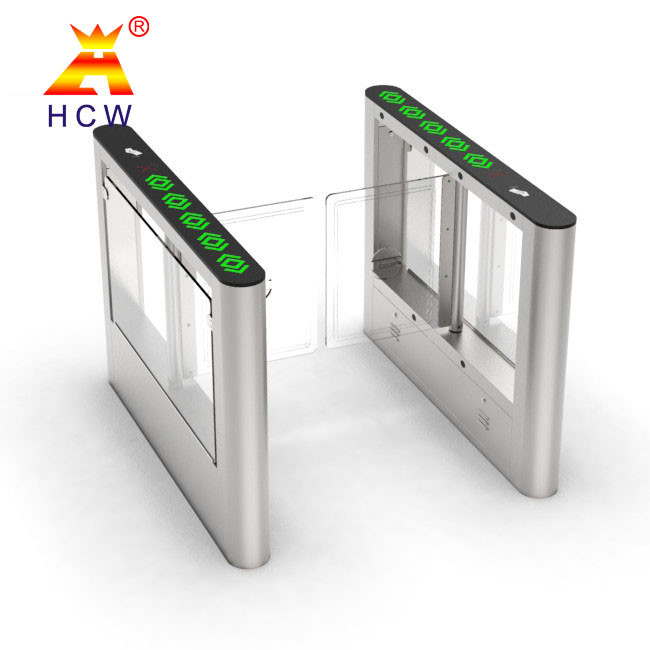

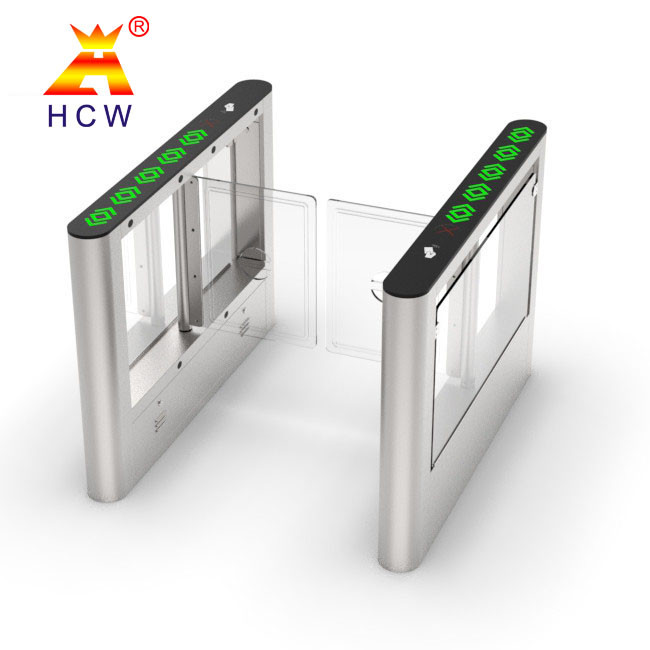

CE Face Recognition Turnstile Entrance Gates IP54 Waterproof Bidirectional

CE Certificate Face Recognition Turnstile Waterproof Outdoor use

Functions and features:

Arrow for entry free, Red Cross for passage locked.

◊ Can open the turnstile by two input signals (signals can be input by access controller, button or

Other equipments)

◊ Provide audible sound prompt and information display function.

◊ The flaps will open automatically during power interruption and recover N/C mode after power on (optional)

◊ counting function. Flap closes after passing N pedestrians continuously by swiping card N times

Correspondingly (N<=16) (optional)

◊ Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction

After reading the card. (optional)

On-site installation and commissioning of equipment
1) Count the accessories according to the packing list
2) Determine the installation location of each gate according to the specific system composition, use site and the selected model.
3) As shown in the installation requirements as shown in the figure below, determine the installation hole position, and pre-process 4 M12 anchor bolts or 4 M12 expansion bolts at the installation position.

4) Put the 3/4" PVC pipes of the strong cables and weak current cables respectively through them, and bury them in the corresponding positions with cement.
