IPX4 Waterproof Face Recognition Turnstile For Access Control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Face Recognition Turnstile | Infrared Beam | 8 Pairs |
|---|---|---|---|
| Product Size | L1600mm X W120mm X H980mm | Material | 304 Stainless Steel |
| Package Weight | About 65 KG (single Side) | Bar Code Scaning | Support |
| QR Code | Support | Movement | Servo Motor |
| Channel Width | 600mm~900mm | Warranty | 1 Year |
| Highlight | IP54 Barrier Turnstile Gate,Dustproof Barrier Turnstile Gate,IP54 waist height turnstile |
||
Product Description
IPX4 Waterproof Face Recognition Turnstile For Access Control

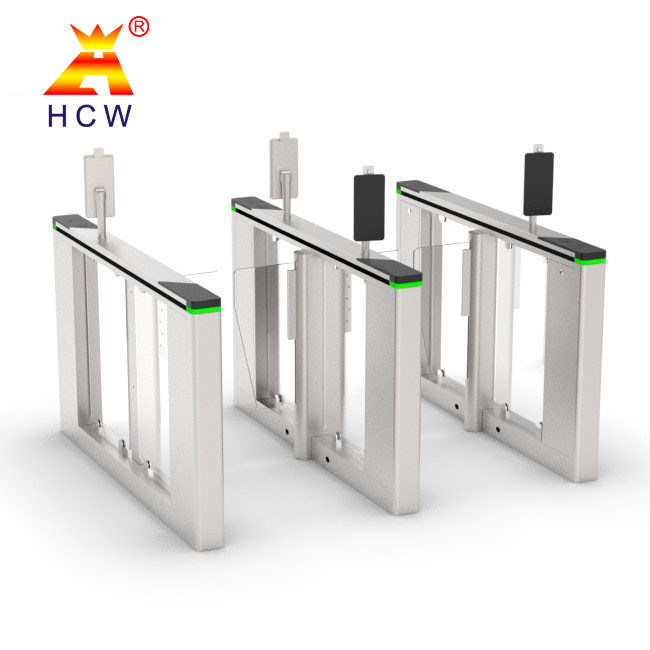

CW427 wing gate is a fully automatic intelligent flap barrier turnstile for pedestrian passages.The movement of this turnstile adopts STC CPU chip, servo motor,8 pairs of infrared detection sensors, with anti-pinch,anti-shock and anti-tailgating functions.The chassis is made of 304 stainless steel,and the door wings are made of plexiglass or soft-wing sponge.
The door wing automatically closes after power-on, and when the power is off,the door wing automatically retracts into the chassis to make personnel pass freely,which meets the fire safety requirements.It supports various card readers, barcode readers,ID card readers,QR code recognition,fingerprint recognition,biometric face recognition, etc.It is easy to connect to the access control system.This kind of flap barrier turnstile is widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings,high-end residential areas,kindergartens, etc.
| Technical parameter: | |
| Product number | CW427 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -20℃-60℃ |
| Relative humidity | 5%--80% |
| IP protection level | 42 |
| Rated power | 20W |
| Input control signal | RS232, 485 |
| Running speed | 40 people/minute |
| Infrared beam | 8 pairs |
| Average life span | 3 million times |
| Channel width | 600mm~900mm |
| Door wing material | 15mm plexiglass, 35mm sponge body with soft wings |
| Product Size | 1600*120*980mm |
| Channel frame | National standard 1.2mm~2.0mm thick + 304 stainless steel |
| Package weight | About 65 KG (single side road) |
