10 Million Life Time Servo Motor 0.3s High Speed Barrier Turnstile Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW427
Minimum Order Quantity 2 piece
Price USD500-900piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 200 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name High Speed Turnstile Gate Motor Servo Motor
Life Time 10 Millions Open/close Speed 0.3s
Infrared Sensor 8 Pairs Material 304 Stainless Steel
Case Thickness 1.5mm Size L1600*W120mm*H980mm
High Light

10000 Face Flap Turnstile Gate


50HZ Flap Turnstile Gate


50HZ turnstile swing gate

Leave a Message
Product Description

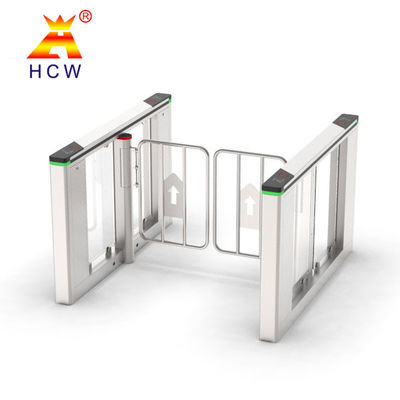

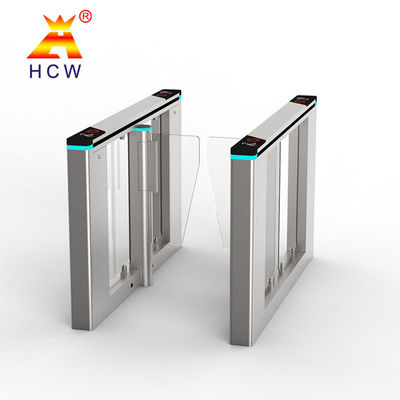

10 million life time servo motor 0.3s high speed barrier turnstile gate




CW427 high-end speed pass anti-collision turnstile gate, adopts servo drive + high-speed servo motor, 10 millions working life time,and the door open or close just need 0.3 seconds.with 1.5mm thickness 304 stainless steel case,8 pairs of infrared detection sensors, high stability, high safty and anti-tailing.


Supports various IC/ID card readers, barcode/QR code readers, fingerprint and face recognition devices,easy to hook up with the access control system. It is widely used in the entrance and exit control of tourist attraction,airport,bus or train station,gymnasium, office buildings, high-end residential areas, government, etc.



Technical parameter:

Product model


Input voltage

AC220V,110V±10%, 50HZ±10% HZ

Working temperature


Relative humidity

≤90% No condensation


servo motor

Rated power


Input control signal

Switch value or RS232, 485

Running speed

30~50 people/minute

Infrared beam

8 pairs

Average life span

10 million times

Channel width


Door wing material

10mm acrylic

Product Size

L 1600mm x W 120mm x H 980mm

Case material

1.5mm 304 stainless steel

Package weight

About 45 KG



Barrier turnstile gate​ functions:

1. Pedestrians are authorized to pass through access control methods such as swiping cards or face recognition. Unauthorized entry will be judged as illegal intrusion and alarm
2. It can pass bidirectional or unidirectional, the direction of passage and the speed of opening and closing doors can be adjusted according to needs, and the fastest speed of opening and closing doors can reach 0.3s

3. barrier turnstile gate is equipped with a total of 8 pairs of infrared sensors, which can accurately determine whether someone is trailing, and once it is found, it will immediately alarm

4. Infrared and mechanical dual anti-pinch, infrared pre-sensing ensures that someone inside the turnstile will not be forcibly closed, even if the turnstile is closed by mistake and pinches a pedestrian, the door will automatically open to reduce injury
5. Anti-collision function, if someone forcibly enters and impacts the turnstile when the door is closed, the turnstile can withstand a maximum impact of 120Nm
6. With various alarm functions, including automatic detection, automatic diagnosis, illegal intrusion, anti-pinch alarm, anti-tailing alarm, etc.
7. The turnstile can be managed and used remotely through a computer
8. Support online and offline use, users can choose by themselves
9. Equipped with LED traffic indicator, the green light means that it is allowed to pass, and the red light means that it is forbidden to pass.
10. After opening the door for a period of time, if there is no one to pass through for a long time, the machine will automatically close the door, and the length of time for no one to pass can be set by the user.
11. With the power-off turnstile self-opening function, it is convenient for pedestrians to pass safely in fire and other emergency situations




1. How about the barrier turnstile gate installation?

It is really easy to install and we have done most of the work before sending our turnstiles. You only need to fix the gate with screws and connect the power cord and network cable. Of course, we will provide detailed installation instructions and technical support.

2. How is the quality of your products?

We provide the highest level of quality at the most competitive price. We choose German, Japanese, and domestic leading brand accessories to ensure product quality from the source. In the factory, we implement 5S management to control the production process.

3. What is the delivery time?

Usually we have stocks of hot-selling models of standard products. Generally, it takes 5-10 working days for regular products. It takes 15-20 working days for customized products.

4. How do you do after-sales service?

We provide lifetime technical support through online, email, video, telephone, etc. We have engineers who can speak English to facilitate direct communication with you. If necessary, we can send technicians for after-sales service.

5. How do you guarantee product quality/quality control?

Our products have ISO9001 and CE certificates, and all detailed information can be found on our website. We are committed to providing our customers with the best product quality.

6. Do you provide OEM service?

Yes, we can provide the following OEM services:

1) We can customize the turnstile according to your needs.

2) We can print your logo on the turnstile, and customize retail box packaging and other things you need.
