Pedestrian Access Control CW406 Swing Barrier Turnstile Gate With SS304 Cabinet

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW406
Minimum Order Quantity 2 piece
Price USD450~650 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Swing Turnstile Gate Cabinet Material 304 Stainless Steel
Door Wing Material Acrylic Product Size 1540*200*990 Mm
Motor Brushless Motor Input Control Signal Swtich Value、RS232
Running Speed 30~60 Person/minute Life Span 5 Million Times
High Light

Fingerprint Barrier Turnstile Gate


RS485 Barrier Turnstile Gate


RS485 Security Gate Access Control Systems

Leave a Message
Product Description

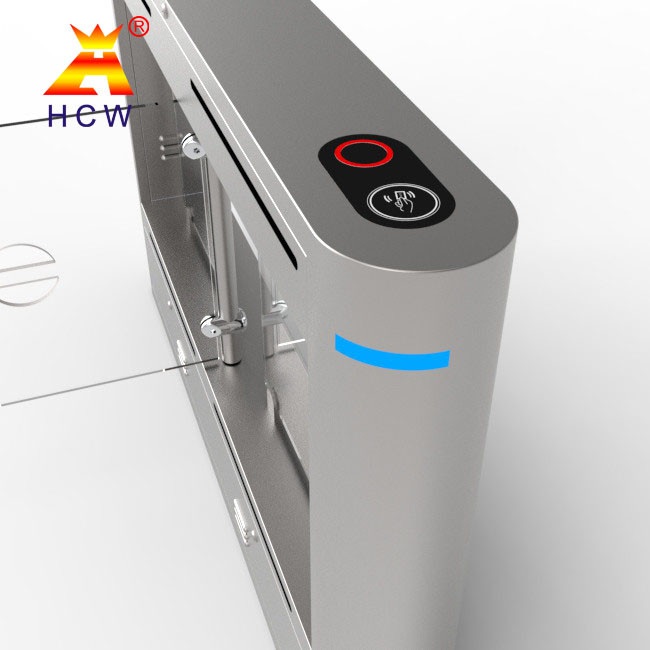

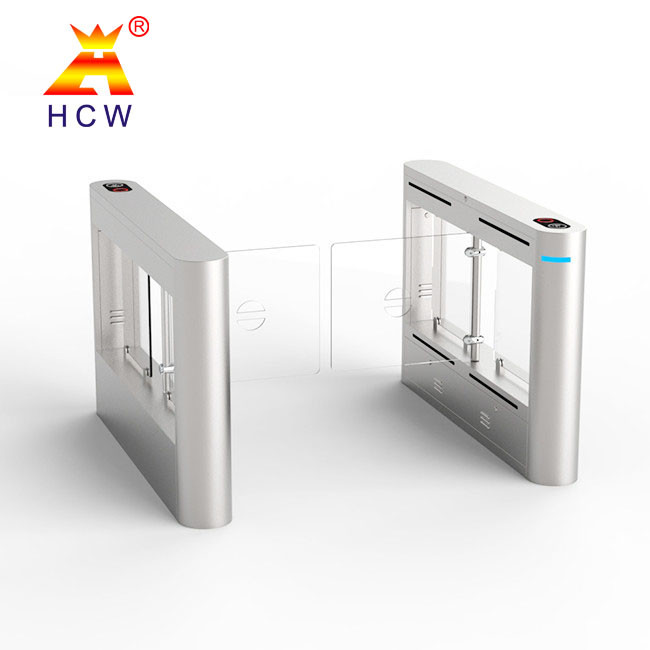

Pedestrian Access Control CW406 Swing Barrier Turnstile Gate With SS304 Cabinet




CW406 swing gate turnstile is a high-end anti-collision turnstile for pedestrian passages. The movement of this turnstile uses a 60W brushless motor, and is equipped with 8 pairs of infrared detection sensors, which has the characteristics of fast speed and high efficiency anti-tailgating. The swing arm will automatically lock when it does not receive the door opening signal, and can withstand a maximum impact of 120Nm, strictly preventing unauthorized personnel from passing; the swing arm will automatically open when the power is off, which meets the fire safety requirements.



The cabinet is made of 304 stainless steel, and the door wings are equipped with acrylic material as standard, can also be customized with the stainless steel swing arm . Equipped with an access control system interface, it can support various card readers, barcode readers, ID card readers, QR code recognition, fingerprint recognition, biometric face recognition and other access control systems. This kind of pedestrian passage swing barrier turnstile is widely used in shopping malls, office buildings, residential areas, schools and other places where large people enter and exit, and can effectively control the in and out of crowded people.



Technical parameter:

Product number CW406
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity ≤90% No condensation
Motor Brushless Motor
Rated power 60W
Input control signal Swtich value,RS232
Running speed 30~60 Person/minute
Infrared beam 8 pairs
Average life span 5 million times
Channel width 600mm~1190mm
Door wing material Standard acrylic swing arm 602X530X10
Channel frame National standard 1.0~1.3mm 304 stainless steel
Package weight About 65KG (single side road)



Main Functions:

1.Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in.

2.Always open and always closed modes can be flexibly selected, and two-way passing can be used. The opening and closing speed of the door wing can also be set according to the flow of people to improve the efficiency of the equipment.

3.Anti-following tracking control technology, strictly preventing unauthorized personnel from passing through.

4.Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time.

5.Anti-shock function, when the door opening signal is not received, the swing arm is automatically locked, and the swing arm can be opened with a maximum impact of 120Nm.

6.With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, and anti-tailing alarm.

7.Remote control management function.

8.It can be run online or offline.

9.LED passing direction indication, showing passing status.

10.When the power is cut off, the swing arm automatically opens, the passage is in a smooth state, and personnel can pass freely to prevent panic.

11.Automatic reset function: after opening the door, the system will automatically cancel the user's permission for this pass if the user does not pass within the specified time,and you can set the passing time.
