CE 40 Persons / Min Flap Barrier Turnstile Gate With IC / ID Card Reader
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Model | CW507 | Power Supply Voltage | AC220V |
|---|---|---|---|
| Working Environment Temperature | -16℃~72℃ | Relative Humidity | 93% |
| IP Protection Level | 56 | Rated Power | 25W |
| Input Control Signal Switch Quantity | Standard Configuration Does Not Include RS232, 485 | Running Speed (XX People/minute) | 30 People/minute |
| High Light | CE Flap Barrier Turnstile,IC card Flap Barrier Turnstile,IC card reader turnstile |
||
Product Description

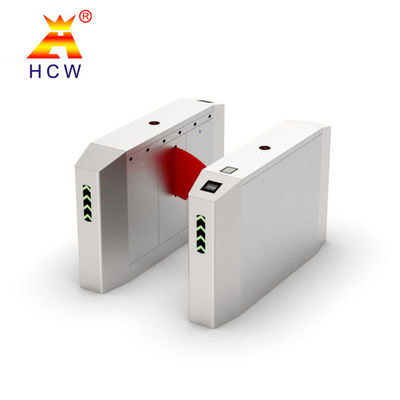

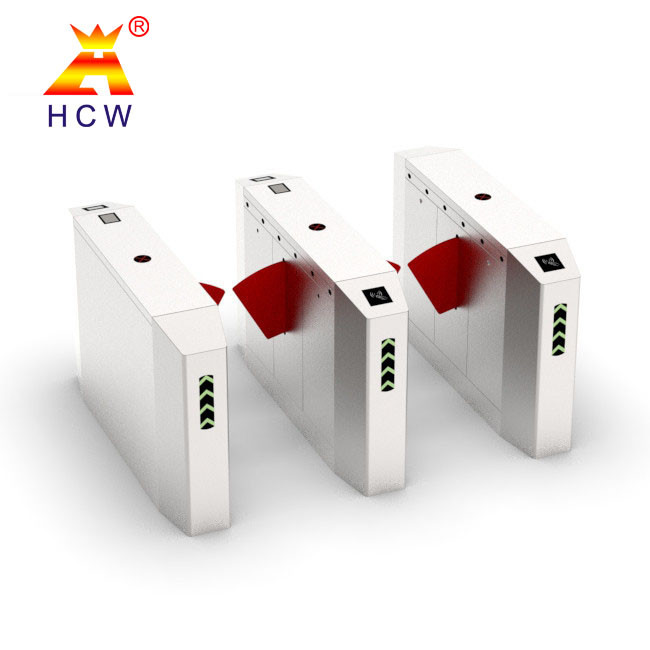

CE 40 Persons / Min Flap Barrier Turnstile Gate With IC / ID Card Reader
CW507 luxury wing gate channel,using STC CPU chip,DC brush motor,4 pairs of infrared detection sensors,long life and high stability,high efficiency and anti-tailing,support various IC/ID card readers,barcode readers,ID card reading,etc.It is easy to connect with the access control system.It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens,etc.
We have strong innovative research and development capabilities,with a research and development center,and the research and development team has more than 10 years of professional experience in the industry.The subordinate electronic engineering department has independent research and development and production capabilities for product core circuit boards,and has obtained relevant patents.
| Technical parameter | |
| Product number | CW507 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃~70℃ |
| Relative humidity | 5%--80% |
| IP protection level | 42 |
| Rated power | 20W |
| Input control signal | Switch value (standard configuration does not include RS232, RS485) |
| Running speed | 40 people/minute |
| Infrared beam | 4 pairs |
| Number of trouble-free runs | 2 million times |
| Average life span | 3 million times |
| Channel width | 600mm |
| Door wing material | 15mm plexiglass, 35mm sponge body with soft wings |
| Product Size | L 1400mm x W 300mm x H 990 mm |
| Channel frame | National standard 1.2mm~1.5mm thick + 304 stainless steel |
| Package weight | About 55 KG (single side road) |
