304 stainless steel intelligent pedestrian passage speed gate for office buildings

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW422
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details wooden case
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Pedestrian Speed Gate Material 304 Stainless Steel
Case Thickness 1.2mm Card Reading Support
Bar Code Scaning Support QR Code Support
Fingerprint Identification Support Face Recognition Support
OEM/ODM Support
Highlight

SUS304 Barrier Turnstile Gate

,

Pedestrian Barrier Turnstile Gate

,

SUS304 access control turnstiles

Leave a Message
Product Description
304 Stainless Steel Intelligent Pedestrian Passage Speed Gate
Product Attributes
Attribute Value
Name Pedestrian speed gate
Material 304 stainless steel
Case thickness 1.2mm
Card reading Support
Bar code scanning Support
QR code Support
Fingerprint identification Support
Face recognition Support
OEM/ODM Support
Product Description

Ultra-Quiet High-Speed Pedestrian Fast-Pass Swing Gate featuring 0.3s ultra-fast passage with noise level below 45 decibels.

Ultra-Fast Passage, Quiet Convenience
  • 0.3-Second Ultra-Fast Response: Driven by high-quality brushless DC motor for fast start-up and shutdown, significantly improving passage efficiency during peak hours.
  • Ultra-Low Noise Operation: Innovative mute technology keeps operating noise below 45 decibels, ideal for high-end venues.
  • Comprehensive Safety Protection: Infrared + mechanical dual anti-pinch design senses pedestrian position in real time to prevent collisions and injuries.
Intelligent Technology, Smart Management
  • Multi-Mode Verification: Supports card swiping, face recognition, QR code scanning, and fingerprint recognition.
  • Data Statistics Function: Real-time passenger flow monitoring and analysis for operational decision support.
  • Durable Structure: 304 stainless steel construction is rust-proof and corrosion-resistant with precision electromechanical design for 1 million trouble-free operations.
Energy Conservation & Emergency Support
  • Intelligent Energy-Saving Mode: Standby power consumption <15W with automatic sleep/wake functions.
  • Emergency Response: Automatic gate drop/free passage mode during power failure, complying with fire safety requirements.
Application Scenarios

High-End Malls/Shopping Centers

Subways/High-Speed Railway Stations

Office Buildings/Enterprise Parks

Airports/Scenic Spots

Schools/Hospitals

Technical Parameters
Product number CW422
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Motor 40W brushless DC
Rated power 70W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30~40 people/minute
Infrared beam 6 pairs
Number of trouble-free runs 3 million times
Average life span 5 million times
Channel width 600~900mm
Swing arm material 10mm Acrylic
Product Size 1600*120*965mm (single movement)
Channel frame 1.2 thick 304 stainless steel
Package weight About 55 KG (single side road)

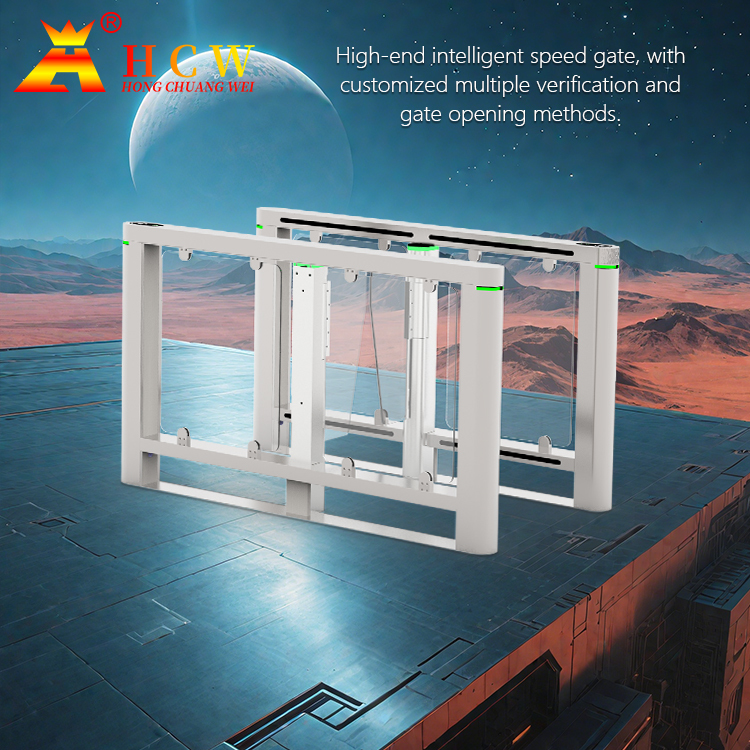

304 stainless steel intelligent pedestrian passage speed gate for office buildings 0

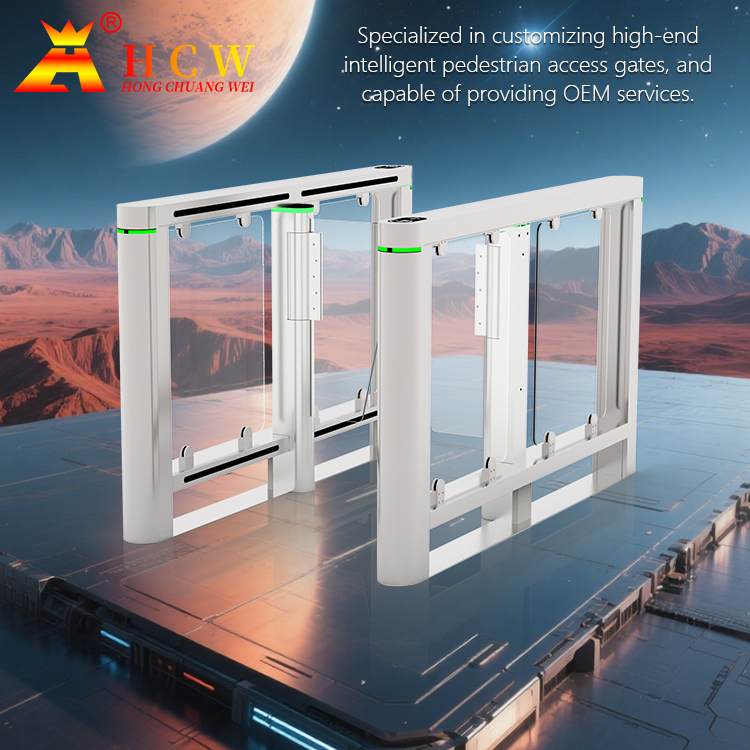

304 stainless steel intelligent pedestrian passage speed gate for office buildings 1

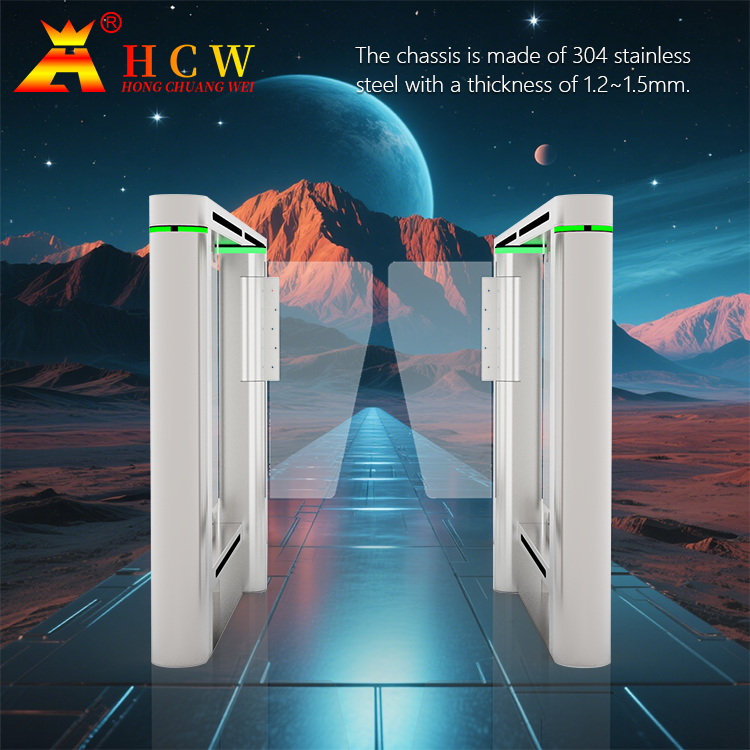

304 stainless steel intelligent pedestrian passage speed gate for office buildings 2

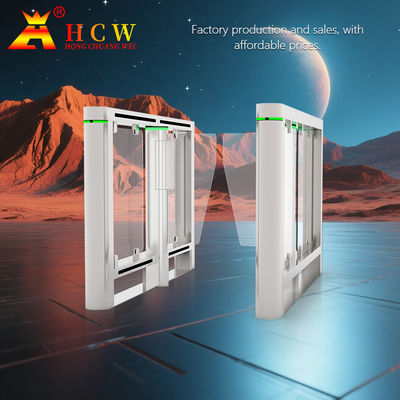

304 stainless steel intelligent pedestrian passage speed gate for office buildings 3
