IP54 Face Recognition Turnstile Gate Swing Barrier For Pedestrian Control

Place of Origin Shenzhen,China
Brand Name hongchuangwei
Certification CE
Model Number CW407
Minimum Order Quantity 1
Price USD300~500 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Swing Turnstile Material 304 Stainless Steel
Case Thickness 1mm Top Cover Thickness 1.2mm
Lane Width 550m Pass Direction Bidirectional
Waterproof IP54 Outdoor Use Support
High Light

IP54 Face Recognition Turnstile


Waterproof Face Recognition Turnstile


IP54 face recognition gate

Leave a Message
Product Description

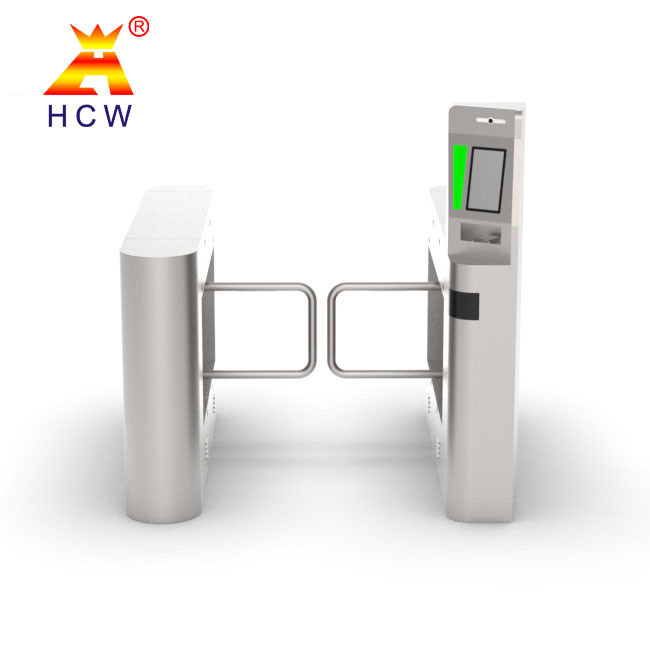

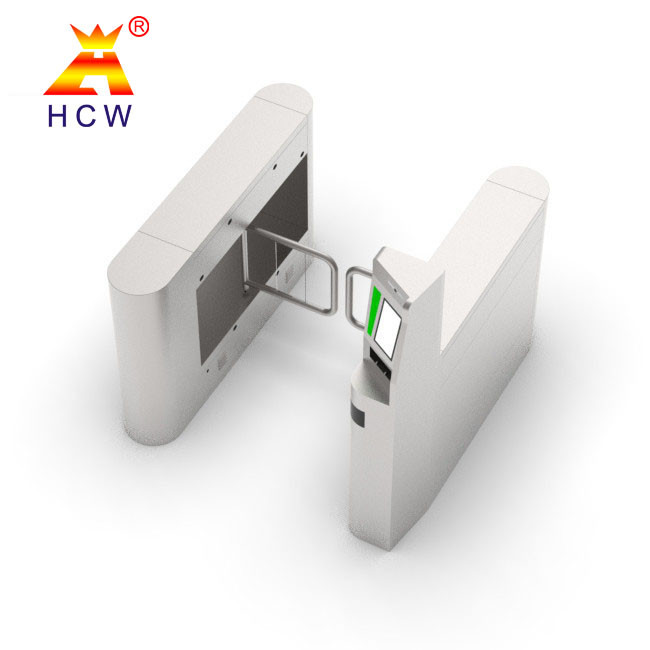

IP54 Waterproof Face Recognition Turnstile Gate Outdoor Use


CW407 high-end pedestrian passage swing gate is one of the passage management equipment,mainly used for pedestrian passage management.With the characteristics of fast opening speed,safety and convenience,it has been widely used in the entrances and exits

of pedestrian passages in schools,office buildings,airports,stations,docks,scenic spots,parks and other places.It can cooperate with the

access control system to realize personnel attendance management,charge management,flow control management,etc.forming an

unattended management system.The product is mainly composed of the main box and the door wings.


The box body is made of 304 stainless steel laser cutting,CNC bending forming,beautiful appearance,and the door wings are made of acrylic.

The system adopts standard electronic interface, integrated QR code scanner and card reader, etc.,can easily integrate barcode,QR code,ID card,IC card and other reading and writing equipment into the computer,thus providing a system for entering and exiting personnel.An orderly

and civilized way can prevent illegal personnel from entering and exiting.At the same time,in order to meet the requirements of fire exit channels, a special fire button interface is provided in the system,which can automatically open the gate and evacuate people in an emergency.


Technical parameter
Product number CW407
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity ≤90% No condensation
Motor Brushless Motor
Rated power 60W
Input control signal Swtich value,RS232
Running speed 30~60 Person/minute
Infrared beam 8 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm~1190mm
Door wing material Standard acrylic swing arm 602X530X10 (stainless steel swing arm can be customized)
Product Size L 1540mm x W 200mm x H 990 mm
Channel frame National standard 1.0~1.3mm 304 stainless steel
Package weight About 65KG (single side road)
