HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System

  • HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System
  • HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System
  • HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System
  • HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System
  • HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System
Place of Origin China
Brand Name HCW
Certification CE
Model Number CW802-2
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details wooden case
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Model CW802-2 Voltage AC220V±10%，50/60HZ
Working Temperature -25℃~+70℃ Relative Humidity ≤90% Non-condensing
Motor 90° Full Height Movement Operating Speed 20 People/minute
Channel Width 600mm Door Wing Material Stainless Steel Pipe
Highlight

Waterproof Full Height Turnstile

,

Durable Full Height Turnstile

,

Access Control System Full Height Turnstile
Leave a Message
Product Description

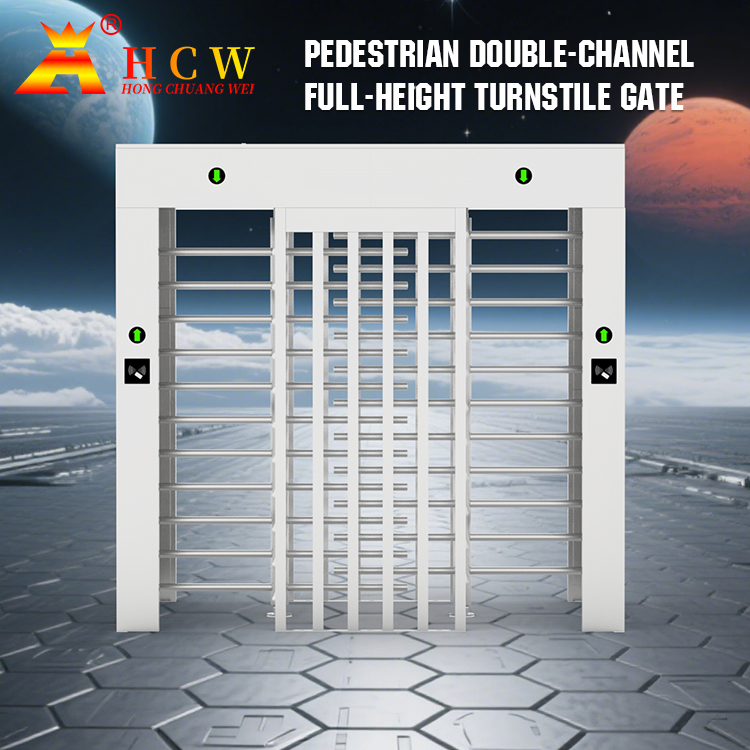

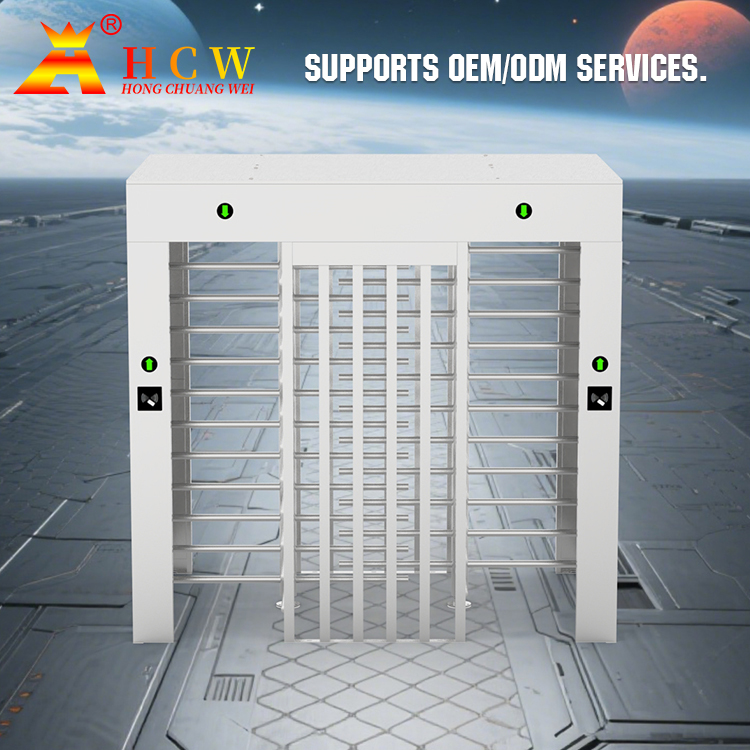

HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System


Product Overview
The 304 stainless steel full-height turnstile is a high-strength, high-security access control device, specially designed for places with large pedestrian flow and high security level requirements. Made of high-quality 304 stainless steel, it has excellent rust and corrosion resistance, and is suitable for various indoor and outdoor environments. The fully enclosed structure effectively prevents climbing and crossing, and when combined with an intelligent control system, it achieves efficient passage and safe management.


High Security
  • Fully enclosed design (height usually ≥2m) to prevent illegal climbing or crawling through.
  • 304 stainless steel cabinet + tempered glass/barrier structure, with strong impact resistance.
  • The gate arm can be quickly released in emergency situations, meeting the requirements for fire escape.


Durable and Anti-Corrosive
  • Made of 304 stainless steel with surface brushed or polished treatment, resistant to acid, alkali and rust, suitable for harsh outdoor environments.


Intelligent Control

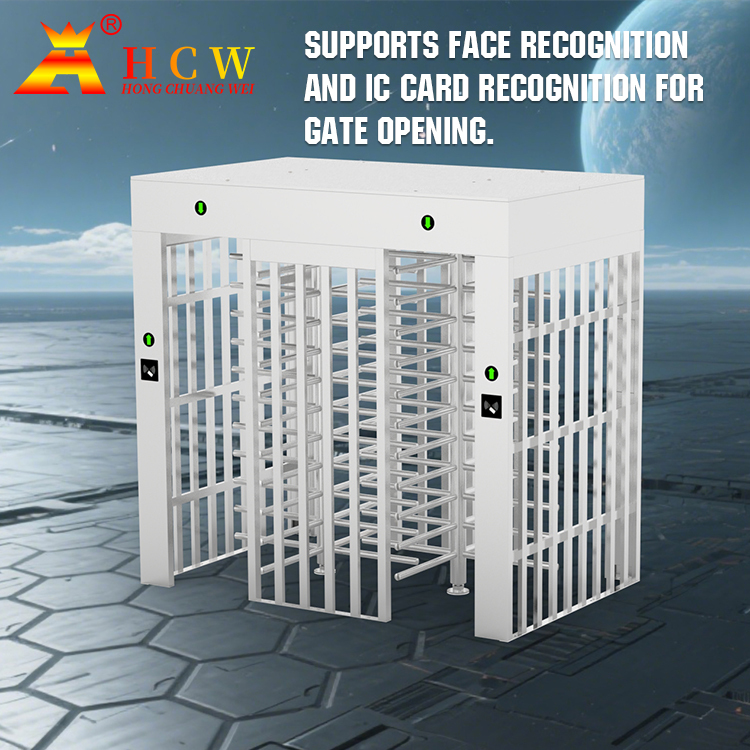

  • Supports multiple verification methods: IC card, fingerprint, face recognition, QR code, etc., and is compatible with access control systems (such as RS485/RS232 communication).
  • Infrared anti-pinch detection, automatically rebounds when encountering obstacles, protecting pedestrians' safety.


Flexible Configuration
  • Optional one-way/two-way passage mode, and the gate rotation direction can be customized (clockwise/counterclockwise).
  • Expandable functions: sound and light alarm, counting statistics, remote management (connecting to smart platforms).


High-Flow Passage
  • Motor-driven with fast response speed (passage speed ≤20 people/minute), suitable for scenarios such as subways, airports, and venues.

Application Scenarios
  • High-security places: prisons, courts, military bases, bank vaults.
  • Public transportation: subway stations, airport security checks, high-speed rail gates.
  • Commercial facilities: large venues, scenic spots, office buildings, factory attendance checking.



Installation and Maintenance
  • For embedded installation, ensure the foundation is level and reserve weak current pipelines.
  • Regularly clean the stainless steel surface and check the lubrication of mechanical components.


Technical parameter
Product number CW802-2
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature ‘-25℃-70℃
Relative humidity 5%--90%
Motor type 90° full-height movement
Rated power Quiescent power consumption:＜50W,Dynamic power consumption:＜100W
Direction of passage One-way or two-way
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 20 people/minute
Opening time Non-adjustable
Number of trouble-free runs 5 million times
Channel width 600mm
Product Size 2400*1500*2300mm

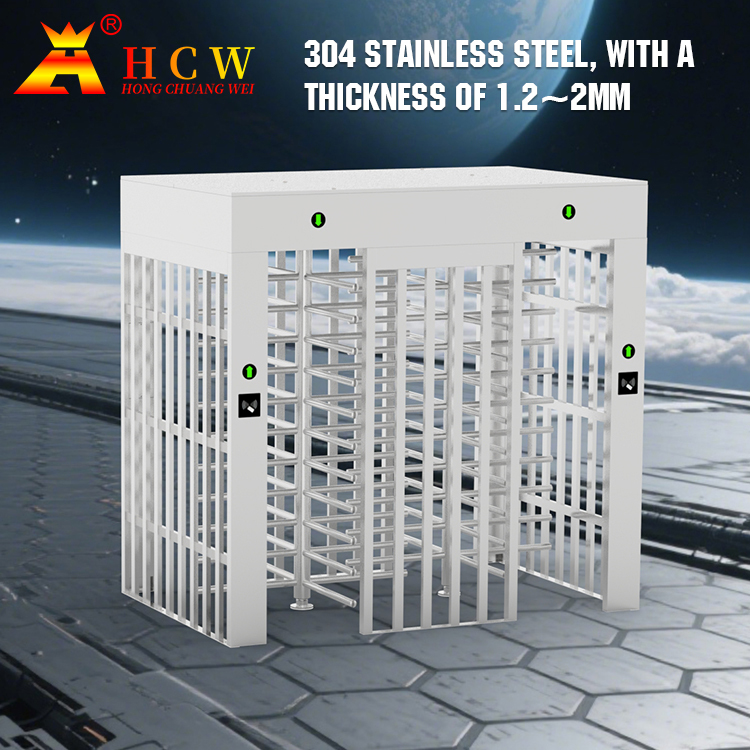

Channel frame 1.2~2.0 thick 304 stainless steel(customization)
Package weight About 250KG

Advantages


1.Durable and Aesthetic Design:The full-height turnstile features an extended stainless steel box, offering a luxurious appearance while ensuring strength and durability. Its rust-proof, white zinc electroplated surface enhances longevity, making it suitable for both indoor and outdoor use.


2.Advanced Integration and Customization:Equipped with a personalized installation interface, it seamlessly integrates with various access control systems, including magnetic cards, barcode cards, ID cards, and IC cards. It also supports one-way or two-way control.


3.Smooth and Quiet Operation:The turnstile operates smoothly with gentle buffering, ensuring low noise and no mechanical shock. This provides a comfortable and efficient user experience, ideal for high-traffic environments.


4.Enhanced Security and Management:It effectively addresses management loopholes, such as people crawling under barriers, and includes features like automatic reset and traffic indication.The power-off unlock function ensures free passage during emergencies.


5.Extended Functionality:Additional features include a counting function, display screen, direction indicator lights, top lights, and a frame-type obstacle fence. These enhancements improve usability, visibility, and overall management efficiency in diverse settings.


HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System 0

HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System 1

HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System 2

HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System 3

HCW Full Height Turnstile Waterproof Face Recognition Durable Access Control System 4
