600-900mm Channel Width QR Code Face Recognition Turnstile 30W Swing Barriers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Special Features | Built-in Siren | Chassis Size | 1600 Length * 120 Width * 965 Height (MM) |
|---|---|---|---|
| SwingArm Length | 280-430mm | Power Supply | 220Vac 50Hz Or 110Vac 60Hz |
| Drive Current | >10mA | WWorking Environments | Indoor, Outdoor |
| Drive Motor | DC Brushless Motor | Channel Width | 600-900mm |
| Highlight | 600mm Channel Face Recognition Turnstile,30W Flap Turnstile Gate,30W Face Recognition Turnstile |
||
Product Description
Face recognition body temperature scanner speed gate turnstile
Product Application:
Speed gate turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card, face recognition device used for staff, provide civilized, orderly access methods, effectively manage the access of staff. It can be widely used in the station, wharf subway, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and institutions that need intelligent access management.
Installation and commissioning
The metal tripod turnstile with integrated design, only 10 minutes to complete the installation or dismantling, installation and commissioning were equipped with operating instructions.
Use
1. Office space: commercial buildings, government offices, etc;
2. Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.
| Technical parameter | |
| Product number | CW422 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor | 40W brushless DC |
| Rated power | 70W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30~40 people/minute |
| Infrared beam | 6 pairs |
| Number of trouble-free runs | 3 million times |
| Average life span | 5 million times |
| Channel width | 600~900mm |
| Swing arm material | 10mm Acrylic |
| Product Size | 1600*120*965mm(single movement) |

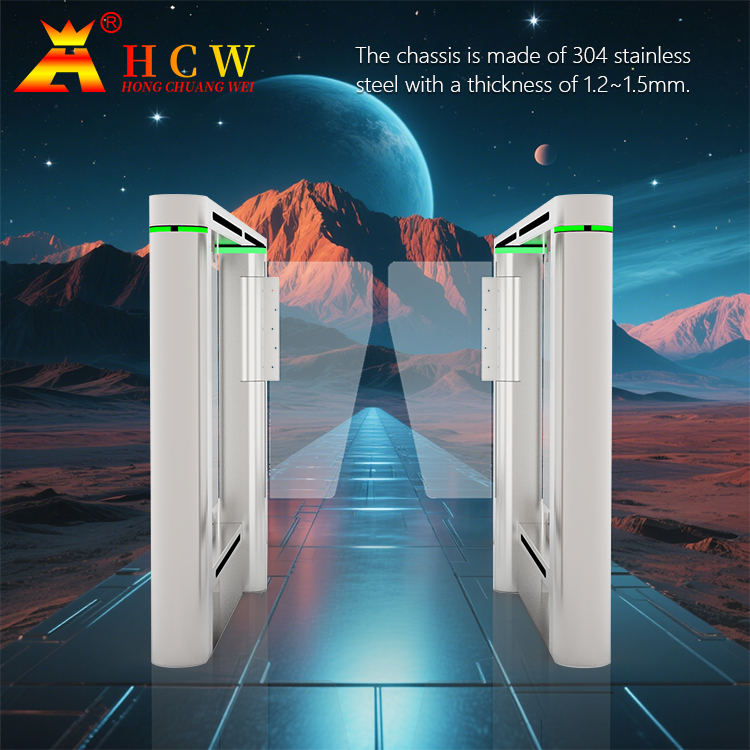

| Channel frame | 1.2 thick 304 stainless steel |
| Package weight | About 55 KG (single side road) |
